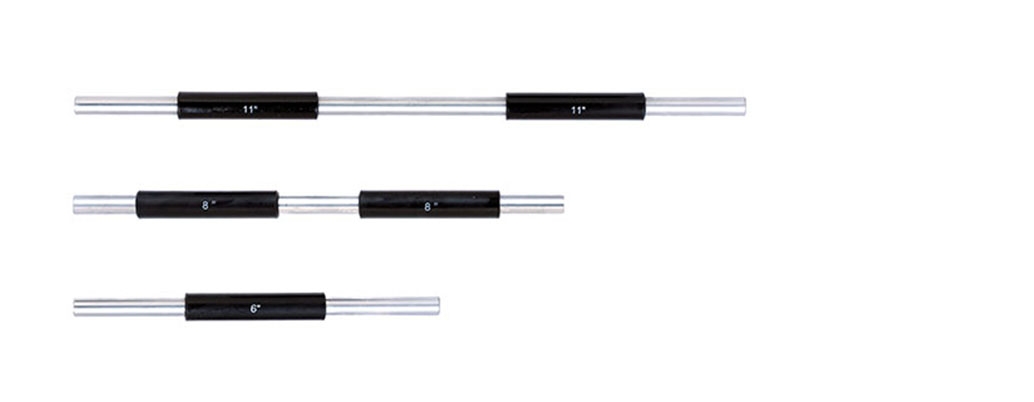

Series 110

技術特性

  • 用於校準外徑千分尺的歸零點
  • 手持部位配有隔熱套,防止體溫導致熱膨脹
  • 小於或等於 11" / 275mm 規格的校對柱採用平頭測量面
  • 大於或等於 12" / 300mm 規格的校對柱採用球頭測量面

規格表標題

測定範圍精度直徑產品編號
1" ± .00005" Φ7mm 110-01-1
2" ± .0001" Φ7mm 110-02-1
3" ± .0001" Φ7mm 110-03-1
4" ± .0001" Φ8mm 110-04-1
5" ± .00015" Φ8mm 110-05-1
6" ± .00015" Φ8mm 110-06-1
7" ± .00015" Φ8mm 110-07-1
8" ± .00015" Φ8mm 110-08-1
9" ± .00020" Φ8mm 110-09-1
10" ± .00020" Φ8mm 110-10-1
11" ± .00020" Φ8mm 110-11-1
12" ± .00025" Φ16mm 110-12-1
13" ± .00025" Φ16mm 110-13-1
14" ± .00025" Φ16mm 110-14-1
15" ± .00025" Φ16mm 110-15-1
16" ± .00025" Φ16mm 110-16-1
17" ± .00025" Φ16mm 110-17-1
18" ± .00025" Φ16mm 110-18-1
19" ± .00030" Φ16mm 110-19-1
20" ± .00030" Φ16mm 110-20-1
21" ± .00030" Φ16mm 110-21-1
23" ± .00030" Φ16mm 110-22-1
25" ± .00030" Φ16mm 110-23-1
27" ± .00035" Φ16mm 110-24-1
29" ± .00035" Φ16mm 110-25-1
31" ± .00035" Φ16mm 110-26-1
33" ± .00035" Φ16mm 110-27-1
35" ± .00035" Φ16mm 110-28-1
37" ± .00035" Φ16mm 110-29-1
測定範圍精度直徑產品編號
25mm ± 0.0012mm Φ7mm 110-01-0
50mm ± 0.0012mm Φ7mm 110-02-0
75mm ± 0.0015mm Φ7mm 110-03-0
100mm ± 0.0020mm Φ8mm 110-04-0
125mm ± 0.0025mm Φ8mm 110-05-0
150mm ± 0.0025mm Φ8mm 110-06-0
175mm ± 0.0025mm Φ8mm 110-07-0
200mm ± 0.0035mm Φ8mm 110-08-0
225mm ± 0.0035mm Φ8mm 110-09-0
250mm ± 0.0035mm Φ8mm 110-10-0
275mm ± 0.0040mm Φ8mm 110-11-0
300mm ± 0.0040mm Φ16mm 110-12-0
325mm ± 0.0045mm Φ16mm 110-13-0
350mm ± 0.0045mm Φ16mm 110-14-0
375mm ± 0.0045mm Φ16mm 110-15-0
400mm ± 0.0045mm Φ16mm 110-16-0
425mm ± 0.0050mm Φ16mm 110-17-0
450mm ± 0.0050mm Φ16mm 110-18-0
475mm ± 0.0050mm Φ16mm 110-19-0
500mm ± 0.0050mm Φ16mm 110-20-0
525mm ± 0.0055mm Φ16mm 110-21-0
575mm ± 0.0055mm Φ16mm 110-22-0
625mm ± 0.0055mm Φ16mm 110-23-0
675mm ± 0.0065mm Φ16mm 110-24-0
725mm ± 0.0065mm Φ16mm 110-25-0
775mm ± 0.0065mm Φ16mm 110-26-0
825mm ± 0.0075mm Φ16mm 110-27-0
875mm ± 0.0075mm Φ16mm 110-28-0
925mm ± 0.0075mm Φ16mm 110-29-0
975mm ± 0.0075mm Φ16mm 110-30-0
1050mm ± 0.0090mm Φ23mm 110-31-0
1150mm ± 0.0090mm Φ23mm 110-32-0
1250mm ± 0.0090mm Φ23mm 110-33-0
1350mm ± 0.0105mm Φ23mm 110-34-0
1450mm ± 0.0105mm Φ23mm 110-35-0
1550mm ± 0.0105mm Φ23mm 110-36-0
1650mm ± 0.0125mm Φ23mm 110-37-0
1750mm ± 0.0125mm Φ23mm 110-38-0
1850mm ± 0.0125mm Φ23mm 110-39-0
1950mm ± 0.0125mm Φ23mm 110-40-0
