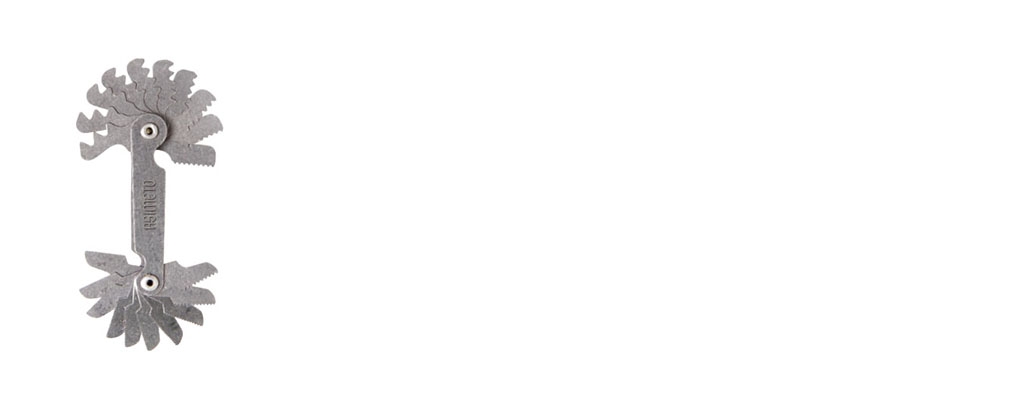

牙規

Series 605
牙規
  • 牙規

技術特性

  • 每個螺紋規都標有螺距的大小。
  • 公制型、統一標準型、惠氏可供選擇。
詢價

規格表標題

INCH METRIC
測定範圍刀片數量刀片组合備註產品編號　
0.25 - 2.5mm 28 0.25 - 0.90mm by 0.05mm
1 - 2mm x 差異 0.1mm,
1.25, 1.75, 2.5mm		 60° 605-50-0
0.35 - 6mm 22 0.35, 0.40, 0.45, 0.50, 0.60, 0.70,
0.75, 0.80, 1.00, 1.25, 1.50, 1.75,
2.00, 2.50, 3.00, 3.50, 4.00, 4.50,
5.00, 5.50, 6.00mm,
and 60° 角度規 		 60° 605-51-0
0.4 - 7mm 21 0.40, 0.50, 0.70, 0.75, 0.80, 0.90,
1.00, 1.25, 1.50, 1.75, 2.00, 2.50,
3.00, 3.50, 4.00, 4.50, 5.00, 5.50,
6.00, 6.50, 7.00mm		 60° 605-52-0
0.4 - 7mm 18 0.40, 0.50, 0.75, 1.00, 1.25, 1.50,
1.75, 2.00, 2.50, 3.00, 3.50, 4.00,
4.50, 5.00, 5.50, 6.00, 6.50, 7.00mm		 60° 605-53-0
4 - 42 TPI 30 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11,
11-1/2, 12, 13, 14, 15, 16, 18, 20, 22,
24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI		 统一標準
(60°)		 605-50-2
4 - 84 TPI 51 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11,
11-1/2, 12, 13, 14, 15, 16, 18, 20, 22,
24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42,
44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64,
66, 68, 70, 72, 74, 76, 78, 80, 82, 84 TPI		 统一標準
(60°)		 605-51-2
0.4 - 7mm
4 - 42 TPI		 51 605-52-0 and 605-50-2 公制和统一標準
(60°)		 605-50-8
4 - 42 TPI 30 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11,
11-1/2, 12, 13, 14, 15, 16, 18, 20, 22,
24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI		 惠氏標準
(55°)		 605-50-5
4 - 60 TPI 28 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11,
12, 13, 14, 16, 18, 20, 22,
24, 25, 26, 28, 30, 32, 34, 36, 40, 48, 60 TPI		 惠氏標準
(55°)		 605-51-5
測定範圍刀片數量刀片组合備註產品編號　
0.25 - 2.5mm 28 0.25 - 0.90mm by 0.05mm
1 - 2mm x 差異 0.1mm,
1.25, 1.75, 2.5mm		 60° 605-50-0
0.35 - 6mm 22 0.35, 0.40, 0.45, 0.50, 0.60, 0.70,
0.75, 0.80, 1.00, 1.25, 1.50, 1.75,
2.00, 2.50, 3.00, 3.50, 4.00, 4.50,
5.00, 5.50, 6.00mm,
and 60° 角度規  		 60° 605-51-0
0.4 - 7mm 21 0.40, 0.50, 0.70, 0.75, 0.80, 0.90,
1.00, 1.25, 1.50, 1.75, 2.00, 2.50,
3.00, 3.50, 4.00, 4.50, 5.00, 5.50,
6.00, 6.50, 7.00mm		 60° 605-52-0
0.4 - 7mm 18 0.40, 0.50, 0.75, 1.00, 1.25, 1.50,
1.75, 2.00, 2.50, 3.00, 3.50, 4.00,
4.50, 5.00, 5.50, 6.00, 6.50, 7.00mm		 60° 605-53-0
4 - 42 TPI 30 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11,
11-1/2, 12, 13, 14, 15, 16, 18, 20, 22,
24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI		 统一標準
(60°)		 605-50-2
4 - 84 TPI 51 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11,
11-1/2, 12, 13, 14, 15, 16, 18, 20, 22,
24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42,
44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64,
66, 68, 70, 72, 74, 76, 78, 80, 82, 84 TPI		 统一標準
(60°)		 605-51-2
0.4 - 7mm
4 - 42 TPI		 51 605-52-0 and 605-50-2 公制和统一標準
(60°)		 605-50-8
4 - 42 TPI 30 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11,
11-1/2, 12, 13, 14, 15, 16, 18, 20, 22,
24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI		 惠氏標準
(55°)		 605-50-5
4 - 60 TPI 28 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11,
12, 13, 14, 16, 18, 20, 22,
24, 25, 26, 28, 30, 32, 34, 36, 40, 48, 60 TPI		 惠氏標準
(55°)		 605-51-5
