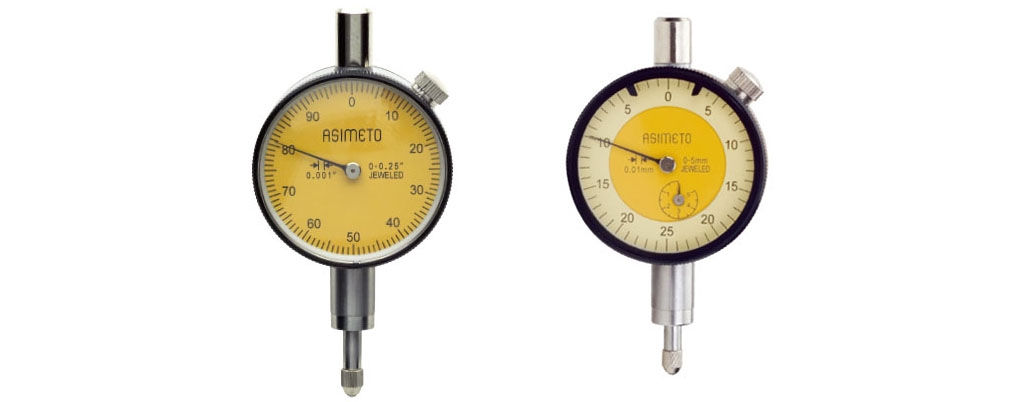

Series 401

FEATURES

  • Graduation:
    Inch: .0005" / .001"
    Metric: 0.01mm
  • Dial face dia.: Ø1.61" / Ø42mm
  • Jeweled
  • Flat back (attached) and lug back supplied
  • Inch models without revolution counter


STANDARD ACCESSORIES

  • Flat back
  • Warranty card, Calibration certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeGraduationRange / Rev.Dial ReadingAccuracyCode No.
0-.25" .001" .1" 0-100 ± .001" 401-06-1
0-.25" .001" .1" 0-50-0 ± .001" 401-06-3
0-.25" .0005" .05" 0-25-0 ± .0005" 401-06-5
RangeGraduationRange / Rev.Dial ReadingAccuracyCode No.
0-3mm 0.01mm 0.5mm 0-50 ± 0.010mm 401-03-1
0-5mm 0.01mm 0.5mm 0-50 ± 0.012mm 401-05-1
0-5mm 0.01mm 0.5mm 0-25-0 ± 0.012mm 401-05-3
RangeGraduationRange / Rev.Dial ReadingAccuracyCode No.
0-3mm 0.01mm 0.5mm 0-50 0.014mm 401-03-0
0-5mm 0.01mm 0.5mm 0-50 0.016mm 401-05-0
0-5mm 0.01mm 0.5mm 0-25-0 0.016mm 401-05-2
