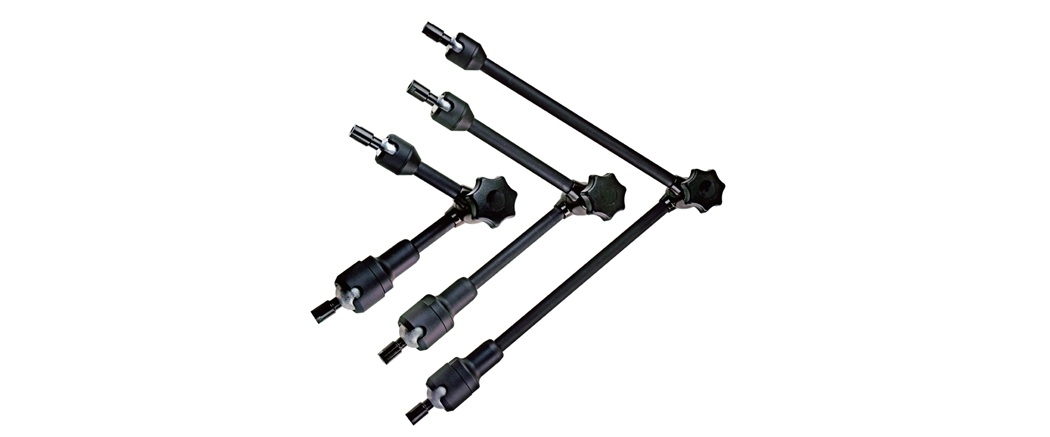

Articulated Power Arms

Series 603
Articulated Power Arms
  • Articulated Power Arms

FEATURES

  • Combines the mechanical and hydraulic locking system together, allowing weights up to 55 lbs (25Kg)
  • Central locking system with spring loaded bearings
  • With longer lengths exceeding the industrys’ norm
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Weight
(kg)		Internal
Thread		Arm Length (L1)
(mm)		Arm Length (L2)
(mm)		Max. Load
(kg)		Code No.　
1.18 M8 x 20 180 130 25 603-20-0
1.33 M8 x 20 280 230 15 603-21-0
2.54 M8 x 20 430 380 10 603-22-0
Weight
(kg)		Internal
Thread		Arm Length (L1)
(mm)		Arm Length (L2)
(mm)		Max. Load
(kg)		Code No.　
1.18 M8 x 20 180 130 25 603-20-0
1.33 M8 x 20 280 230 15 603-21-0
2.54 M8 x 20 430 380 10 603-22-0
