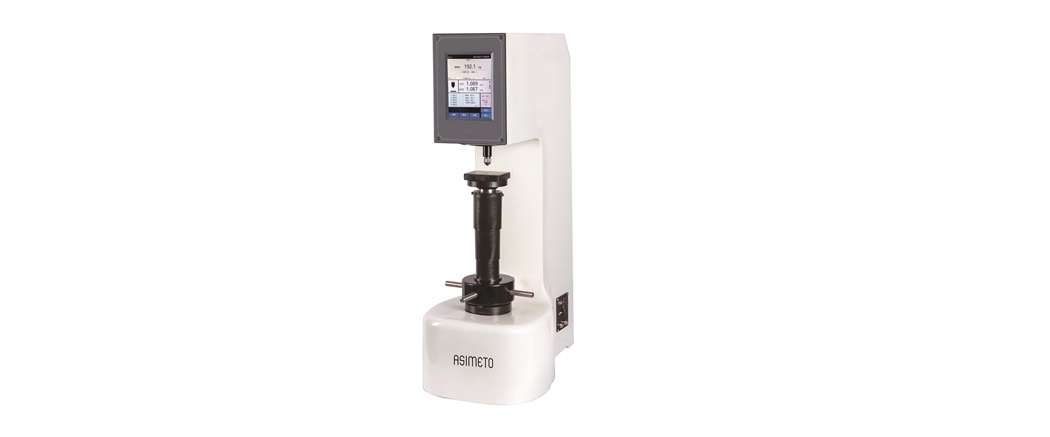

Brinell Hardness Tester

Series 640
Brinell Hardness Tester
  • Brinell Hardness Tester

FEATURES

  • Used for determining the brinell hardness of various metals.
  • A "V" anvil is supplied for testing round work pieces.
  • Readings provided to a minimum resolution 0.5HR.
  • Mechanical models are designed with reversing switch.
  • Digital models provide automatic operation reducing manual testing errors.
  • The digital model has a large LCD screen.

STANDARD ACCESSORIES

  • Tungsten carbide ball penetrator
    Ø2.5mm, Ø5mm, Ø10mm                     1pc each
  • V-notch anvil                                           1pc
  • Small flat anvil                                        1pc
  • Large flat anvil                                       1pc
  • Brinell standardized block                  2pcs
  • 20X readout microscope                     1pc
  • Instruction manual                                1pc
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeTest ForceMax. Height of
Test Piece		Depth ThroatCode No.　
8-650HBW 980.7, 1225.9, 1838.8, 2451.8, 4903.5,
7355.3, 9807, 14710.5, 29421N
(100, 125, 187.5, 250, 500,
750, 1000, 1500, 1500, 3000kgf)		 280mm 150mm 640-10-7
RangeTest ForceMax. Height of
Test Piece		Depth ThroatCode No.　
8-650HBW 980.7, 1225.9, 1838.8, 2451.8, 4903.5,
7355.3, 9807, 14710.5, 29421N
(100, 125, 187.5, 250, 500,
750, 1000, 1500, 1500, 3000kgf)		 280mm 150mm 640-10-7
RangeTest ForceMax. Height of
Test Piece		Depth of ThroatCode No.　
8-650HBW 1838.8, 2451.8, 7355.3, 9807,
29421N (187.5, 250, 750, 1000, 3000kgf)		 230mm 120mm 640-10-1
RangeTest ForceMax. Height of
Test Piece		Depth of ThroatCode No.　
8-650HBW 1838.8, 2451.8, 7355.3, 9807,
29421N (187.5, 250, 750, 1000, 3000kgf)		 230mm 120mm 640-10-1
