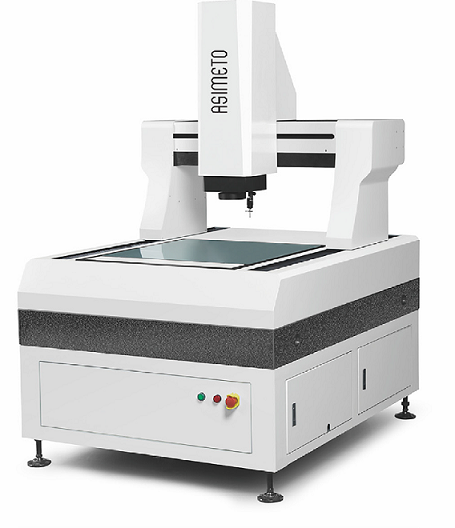

CNC 2D Vision Measuring System (Gantry Type)

Series 647
CNC 2D Vision Measuring System (Gantry Type)
  • CNC 2D Vision Measuring System (Gantry Type)

FEATURES

  • High precision marble base and mechanical structure provide great stability and rigidity.
  • Fully auto close loop control, auto measurement.
  • Can set auto measurement, and process batch measurement with high efficiency.
  • Auto zoom lens with co-axial light.
  • 2.0M pixel digital camera.
  • Programmable 5-ring 8-division LED surface illumination.
  • Contour parallel LED illumination.
  • RSF / Renishaw 0.1μm linear scale.
  • Joystick control.
  • RationalVue software.

OPTIONAL

  • Laser sensor
  • Touch probe
  • MCR20 rack
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Code No.　
Model No. CVS5040B 647-05-2
X/Y-Axis Travel 500 x 400mm
Dimension (WxDxH) 1700 x 1180 x 1750mm
Weight 1400kg
Z-Axis Travel 200mm
X/Y/Z-Axis Scale Resolution High Precision Linear Scale, .0001mm
X/Y-Axis Accuracy* ≤2+L/200(μm)
Repeatability ±2µm
Base and Pillar High Accuracy Marble
Illumination
(Software Adjustment)		 Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable
Illumination
(Software Adjustment)		 Contour: LED Parallel Illumination
Illumination
(Software Adjustment)		 LED Laser Navigation Lights
Camera 2.0M Pixel Digital Camera
Zoom Lens** Auto zoom lens with co-axial light
Field of View 8.1 ~ 1.3mm
(Depends on Camera and Lens)
Working Environment Temperature: 20°C±2°C
Change range < 2°C/hr
Working Environment Humidity: 30% ~ 80%
Working Environment Vibration <0.002g, <15Hz
Code No.　
Model No. CVS5040B 647-05-2
X/Y-Axis Travel 500 x 400mm
Dimension (WxDxH) 1700 x 1180 x 1750mm
Weight 1400kg
Z-Axis Travel 200mm
X/Y/Z-Axis Scale Resolution High Precision Linear Scale, .0001mm
X/Y-Axis Accuracy* ≤2+L/200(μm)
Repeatability ±2µm
Base and Pillar High Accuracy Marble
Illumination
(Software Adjustment)		 Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable
Illumination
(Software Adjustment)		 Contour: LED Parallel Illumination
Illumination
(Software Adjustment)		 LED Laser Navigation Lights
Camera 2.0M Pixel Digital Camera
Zoom Lens** Auto zoom lens with co-axial light
Field of View 8.1 ~ 1.3mm
(Depends on Camera and Lens)
Working Environment Temperature: 20°C±2°C
Change range < 2°C/hr
Working Environment Humidity: 30% ~ 80%
Working Environment Vibration <0.002g, <15Hz
Code No.　
Model No. CVS6050B 647-06-2
X/Y-Axis Travel 600 x 500mm
Dimension (WxDxH) 1700 x 1180 x 1750mm
Weight 1500kg
Z-Axis Travel 200mm
X/Y/Z-Axis Scale Resolution High Precision Linear Scale, .0001mm
X/Y-Axis Accuracy* ≤2+L/200(μm)
Repeatability ±2µm
Base and Pillar High Accuracy Marble
Illumination
(Software Adjustment)		 Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable
Illumination
(Software Adjustment)		 Contour: LED Parallel Illumination
Illumination
(Software Adjustment)		 LED Laser Navigation Lights
Camera 2.0M Pixel Digital Camera
Zoom Lens** Auto zoom lens with co-axial light
Field of View 8.1 ~ 1.3mm
(Depends on Camera and Lens)
Working Environment Temperature: 20°C±2°C
Change range < 2°C/hr
Working Environment Humidity: 30% ~ 80%
Working Environment Vibration <0.002g, <15Hz
Code No.　
Model No. CVS6050B 647-06-2
X/Y-Axis Travel 600 x 500mm
Dimension (WxDxH) 1700 x 1180 x 1750mm
Weight 1500kg
Z-Axis Travel 200mm
X/Y/Z-Axis Scale Resolution High Precision Linear Scale, .0001mm
X/Y-Axis Accuracy* ≤2+L/200(μm)
Repeatability ±2µm
Base and Pillar High Accuracy Marble
Illumination
(Software Adjustment)		 Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable
Illumination
(Software Adjustment)		 Contour: LED Parallel Illumination
Illumination
(Software Adjustment)		 LED Laser Navigation Lights
Camera 2.0M Pixel Digital Camera
Zoom Lens** Auto zoom lens with co-axial light
Field of View 8.1 ~ 1.3mm
(Depends on Camera and Lens)
Working Environment Temperature: 20°C±2°C
Change range < 2°C/hr
Working Environment Humidity: 30% ~ 80%
Working Environment Vibration <0.002g, <15Hz
Code No.　
Model No. CVS8060B 647-08-2
X/Y-Axis Travel 800 x 600mm
Dimension (WxDxH) 1700 x 1280 x 1750mm
Weight 1800kg
Z-Axis Travel 200mm
X/Y/Z-Axis Scale Resolution High Precision Linear Scale, .0001mm
X/Y-Axis Accuracy* ≤2+L/200(μm)
Repeatability ±2µm
Base and Pillar High Accuracy Marble
Illumination
(Software Adjustment)		 Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable
Illumination
(Software Adjustment)		 Contour: LED Parallel Illumination
Illumination
(Software Adjustment)		 LED Laser Navigation Lights
Camera 2.0M Pixel Digital Camera
Zoom Lens** Auto zoom lens with co-axial light
Field of View 8.1 ~ 1.3mm
(Depends on Camera and Lens)
Working Environment Temperature: 20°C±2°C
Change range < 2°C/hr
Working Environment Humidity: 30% ~ 80%
Working Environment Vibration <0.002g, <15Hz
Code No.　
Model No. CVS8060B 647-08-2
X/Y-Axis Travel 800 x 600mm
Dimension (WxDxH) 1700 x 1280 x 1750mm
Weight 1500kg
Z-Axis Travel 200mm
X/Y/Z-Axis Scale Resolution High Precision Linear Scale, .0001mm
X/Y-Axis Accuracy* ≤2+L/200(μm)
Repeatability ±2µm
Base and Pillar High Accuracy Marble
Illumination
(Software Adjustment)		 Surface: 5-ring 8-division 0 ~ 255 grade continue adjustable
Illumination
(Software Adjustment)		 Contour: LED Parallel Illumination
Illumination
(Software Adjustment)		 LED Laser Navigation Lights
Camera 2.0M Pixel Digital Camera
Zoom Lens** Auto zoom lens with co-axial light
Field of View 8.1 ~ 1.3mm
(Depends on Camera and Lens)
Working Environment Temperature: 20°C±2°C
Change range < 2°C/hr
Working Environment Humidity: 30% ~ 80%
Working Environment Vibration <0.002g, <15Hz
