Series 660 / 661

FEATURES

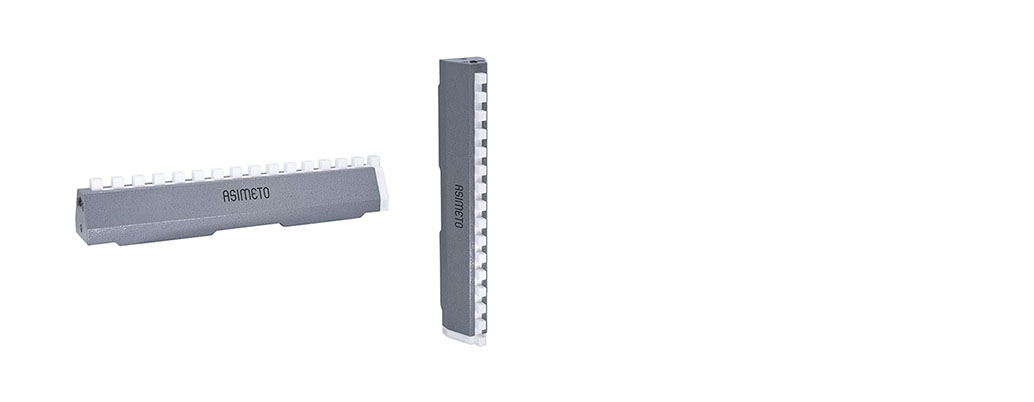

  • Check masters are used to provide the incremental positioning error during the calibration of coordinate measuring machines or machine tools
  • Can be used in either vertical or horizontal position
  • The individual gauging surfaces are made of zirconium based ceramic that resists corrosion and provides stability to size change over time

PRODUCT SPECIFICATIONS

RangePitchAccuracyParallelismCode No.
12" 1"/.5" ±.00005" .00004" 661-12-1
24" 1"/.5" ±.00007" .00006" 661-24-1
RangePitchAccuracyParallelismCode No.
300mm 20mm/10mm ±1.2μm 1μm 661-12-0
600mm 20mm/10mm ±1.8μm 1.5μm 661-24-0
RangePitchAccuracyParallelismCode No.
12" 1"/.5" ±.00005" .00004" 660-12-1
24" 1"/.5" ±.00007" .00006" 660-24-1
RangePitchAccuracyParallelismCode No.
300mm 20mm/10mm ±1.2μm 1μm 660-12-0
600mm 20mm/10mm ±1.8μm 1.5μm 660-24-0
