Concentricity Gauge

Series 646

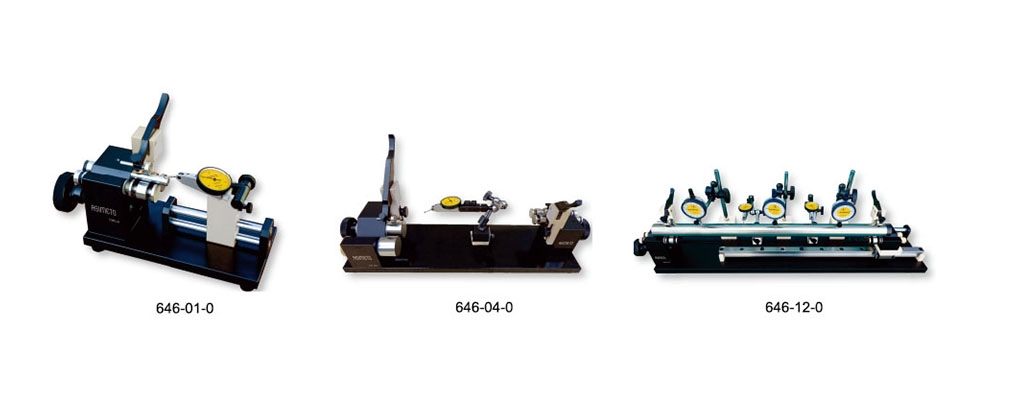

Concentricity Gauge
  • Concentricity Gauge

FEATURES

  • Precision structure with ball bearing slide
  • Equipped with ASIMETO measuring tools or together with universal magnetic base
  • Light and easy to be used to measure concentricity / concentricity for parts such as shaft, tube, bush, screw etc
  • Dial test indicator and universal magnetic base are not included
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Clip Outer Dia.
(mm)		Size (mm)ModelCode No.
Ф1 ~ Ф30 260x98x110 CMG-A 646-01-0
Ф1 ~ Ф30 260x170x150 CMG-AA 646-02-0
Ф30 ~ Ф90 330x140x95 CMG-AB 646-03-0
Ф1 ~ Ф90 520x140x200 CMG-ABA 646-04-0
Ф1 ~ Ф40 390x98x110 CMG-AL 646-05-0
Ф1 ~ Ф30 260x98x110 CMG-AR 646-06-0
Ф1 ~ Ф35 390x98x110 CMG-B1 646-07-0
Ф1 ~ Ф35 390x98x110 CMG-B1R 646-08-0
Ф1 ~ Ф35 500x98x120 CMG-B3 646-09-0
Ф1 ~ Ф35 500x98x120 CMG-B3R 646-10-0
Ф1 ~ Ф40 600x200x250 CMG-A-S3 646-11-0
Ф1 ~ Ф40 850x190x350 CMG-A-S6 646-12-0
Ф1 ~ Ф40 1250x190x350 CMG-A-S10 646-13-0
Clip Outer Dia.
(mm)		Size (mm)ModelCode No.
Ф1 ~ Ф30 260x98x110 CMG-A 646-01-0
Ф1 ~ Ф30 260x170x150 CMG-AA 646-02-0
Ф30 ~ Ф90 330x140x95 CMG-AB 646-03-0
Ф1 ~ Ф90 520x140x200 CMG-ABA 646-04-0
Ф1 ~ Ф40 390x98x110 CMG-AL 646-05-0
Ф1 ~ Ф30 260x98x110 CMG-AR 646-06-0
Ф1 ~ Ф35 390x98x110 CMG-B1 646-07-0
Ф1 ~ Ф35 390x98x110 CMG-B1R 646-08-0
Ф1 ~ Ф35 500x98x120 CMG-B3 646-09-0
Ф1 ~ Ф35 500x98x120 CMG-B3R 646-10-0
Ф1 ~ Ф40 600x200x250 CMG-A-S3 646-11-0
Ф1 ~ Ф40 850x190x350 CMG-A-S6 646-12-0
Ф1 ~ Ф40 1250x190x350 CMG-A-S10 646-13-0
