Centering Indicators

Series 469
Centering Indicators
  • Centering Indicators

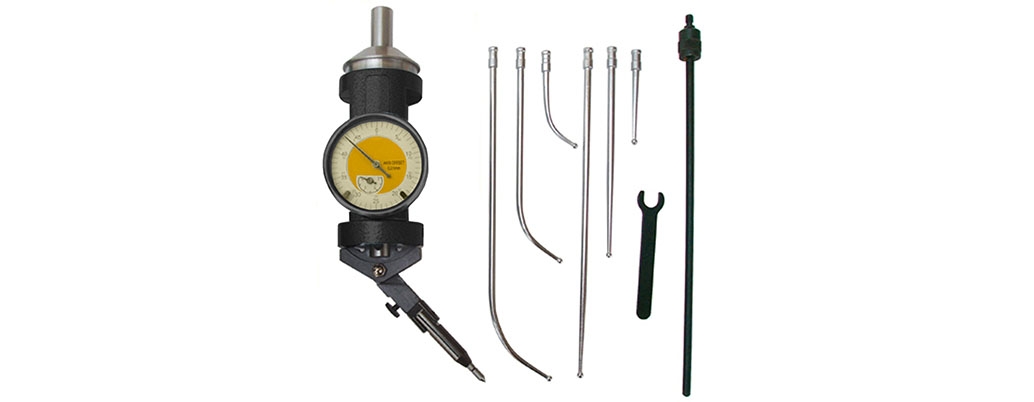

FEATURES

  • Graduation: .0005" / 0.01mm
  • Provides a simplified method of centering a workpiece or fixture in the horizontal direction for vertical machines, internal or external diameters.  Face of indicator remains stationary in any desired position while the machine spindle rotates, leaving the operator with both hands free to accurately position the machine table.
  • Shank Dia.: ø3/8" / ø10mm
  • Operating speed not to exceed 800 RPM
  • Range:
    Internal: 5/32" - 12" / 4 - 300mm
    External: Up to 12" / 300mm
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Dial ReadingAccuracyCode No.
0.0015" ±.0002" 469-00-8
Dial ReadingAccuracyCode No.
0.01mm 0.005mm 469-00-6
DescriptionLengthCapacityCode No.
6 pcs Feeler Set 469-01-1
ID Feeler 2"/50mm 4"/100mm 469-01-2
ID Feeler 4"/100mm 8"/200mm 469-01-3

ID Feeler

 6"/150mm 12"/300mm 469-01-4

OD Feeler

 2"/50mm 4"/100mm 469-01-5

OD Feeler

 4"/100mm 8"/200mm 469-01-6

OD Feeler

 6"/150mm 12"/300mm 469-01-7

Center Locating Feeler

 - - 469-01-8

Feeling Rod

 - - 469-01-9
DescriptionLengthCapacityCode No.
6 pcs Feeler Set 469-01-1
ID Feeler 2"/50mm 4"/100mm 469-01-2
ID Feeler 4"/100mm 8"/200mm 469-01-3

ID Feeler

 6"/150mm 12"/300mm 469-01-4

OD Feeler

 2"/50mm 4"/100mm 469-01-5

OD Feeler

 4"/100mm 8"/200mm 469-01-6

OD Feeler

 6"/150mm 12"/300mm 469-01-7

Center Locating Feeler

 - - 469-01-8

Feeling Rod

 - - 469-01-9
