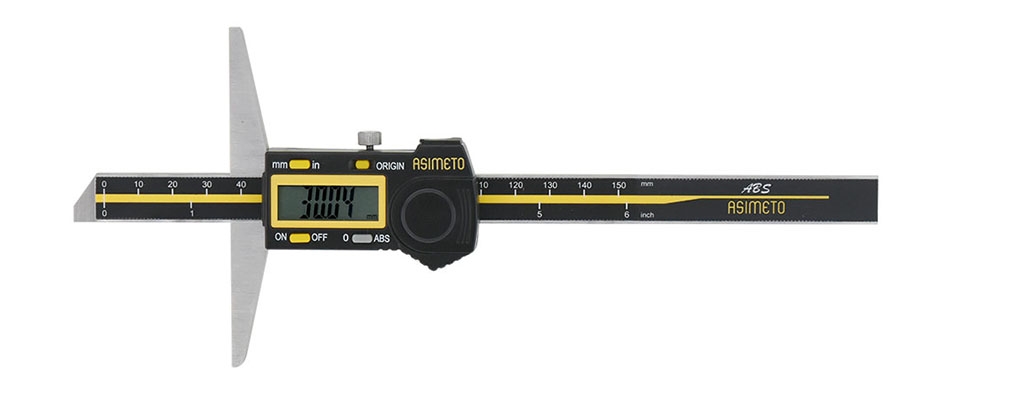

ABS Depth Calipers

Series 327
ABS Depth Calipers
  • ABS Depth Calipers

FEATURES

  • Resolution: .0005" / 0.01mm
  • Both of the measuring surfaces are precision ground for accuracy
  • Inch/Metric conversion
  • Cable data output: 900-05-4/5
  • Wireless data output:
    Transmitter: 901-00-4/6
    Receiver: 901-00-3


STANDARD ACCESSORIES

  • Battery
  • Warranty card, Calibration certificate, Instruction manual

Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeGraduationAccuracyCode No.　
0-6" / 0-150mm .0005" ± .001" 327-06-7
0-8" / 0-200mm .0005" ± .0015" 327-08-7
0-12" / 0-300mm .0005" ± .0015" 327-12-7
RangeGraduationAccuracyCode No.
0-150mm / 0-6" 0.01mm ± 0.03mm 327-06-7
0-200mm / 0-8" 0.01mm ± 0.03mm 327-08-7
0-300mm / 0-12" 0.01mm ± 0.04mm 327-12-7
