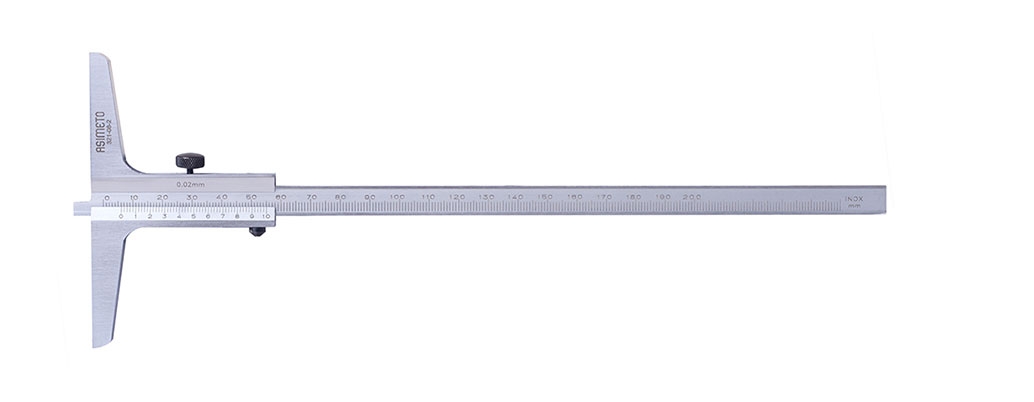

Series 321

FEATURES

  • Resolution: .001" /0.02mm or 0.05mm

PRODUCT SPECIFICATIONS

RangeGraduationAccuracyCode No.
0-6" / 0-150mm .001" ± .001" 321-06-1
0-8" / 0-200mm .001" ± .0015" 321-08-1
0-12" / 0-300mm .001" ± .0015" 321-12-1
0-20" / 0-500mm .001" ± .002" 321-20-1
RangeGraduationAccuracyCode No.
0-150mm / 0-6" 0.02mm ± 0.03mm 321-06-2
0-200mm / 0-8" 0.02mm ± 0.03mm 321-08-2
0-300mm / 0-12" 0.02mm ± 0.04mm 321-12-2
0-500mm / 0-20" 0.02mm ± 0.06mm 321-20-2
0-150mm 0.05mm ± 0.05mm 321-06-0
0-200mm 0.05mm ± 0.05mm 321-08-0
0-300mm 0.05mm ± 0.05mm 321-12-0
