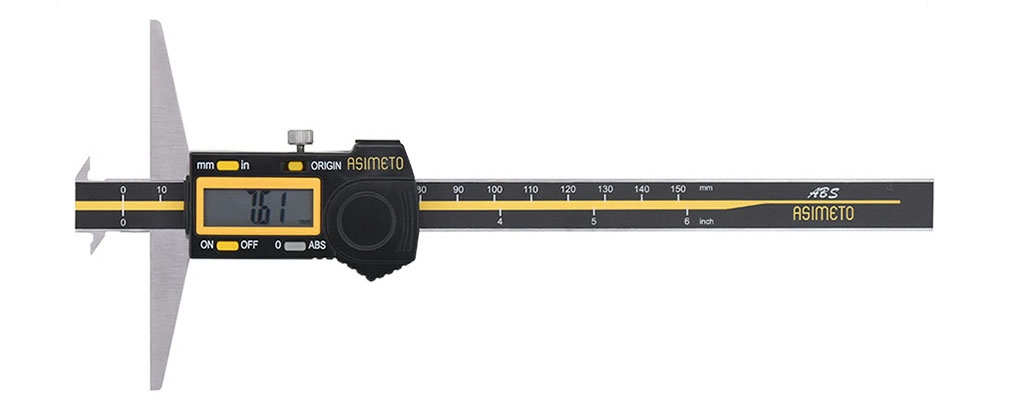

Series 323

FEATURES

  • Resolution: .0005" / 0.01mm
  • The hooked measuring surfaces are used for measurement of internal or external grooves and other intricate work piece characteristics
  • The main beam on the vernier models is double sided with dual scales, and is able to be reversed in the slider for measurement flexibility
  • The base and measuring faces are hardened and precision ground
  • Cable data output: 900-05-4/5
  • Wireless data output:
    Transmitter: 901-00-4/6
    Receiver: 901-00-3


STANDARD ACCESSORIES

  • Battery
  • Warranty card, Calibration certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeGraduationAccuracyCode No.
0-6" / 0-150mm .0005" ± .001" 323-06-7
0-8" / 0-200mm .0005" ± .0015" 323-08-7
0-12" / 0-300mm .0005" ± .0015" 323-12-7
RangeGraduationAccuracyCode No.
0-150mm / 0-6" 0.01mm ± 0.03mm 323-06-7
0-200mm / 0-8" 0.01mm ± 0.03mm 323-08-7
0-300mm / 0-12" 0.01mm ± 0.04mm 323-12-7
