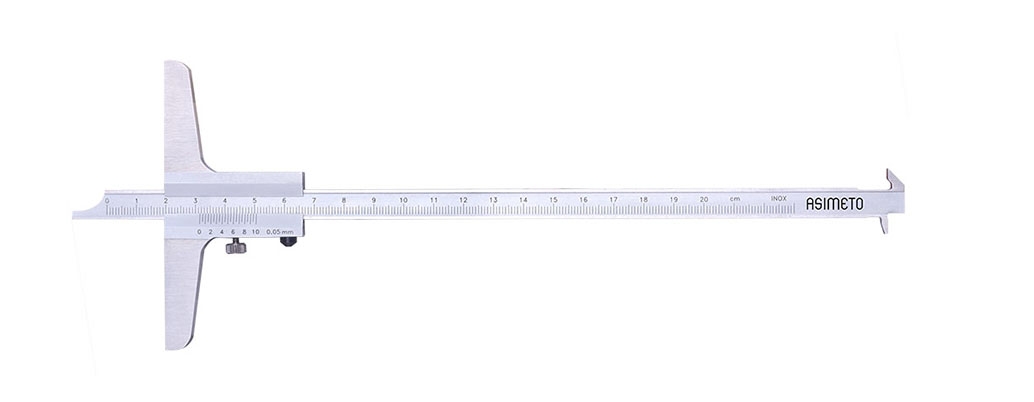

Series 331

FEATURES

  • Resolution: .001" / 0.05mm
  • The hooked measuring surfaces are used for measurement of internal or external grooves and other intricate work piece characteristics
  • The main beam on the vernier models is double sided with dual scales, and is able to be reversed in the slider for measurement flexibility
  • The base and measuring faces are hardened and precision ground


STANDARD ACCESSORIES

  • Warranty card, Calibration certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeGraduationAccuracyCode No.
0-6" / 0-150mm .001" ± .001" 331-06-3
0-8" / 0-200mm .001" ± .0015" 331-08-3
0-12" / 0-300mm .001" ± .0015" 331-12-3
RangeGraduationAccuracyCode No.
0-150mm / 0-6" 0.05mm ± 0.05mm 331-06-2
25-50mm / 1-2" 0.05mm ± 0.05mm 331-08-2
50-75mm / 2-3" 0.05mm ± 0.08mm 331-12-2
