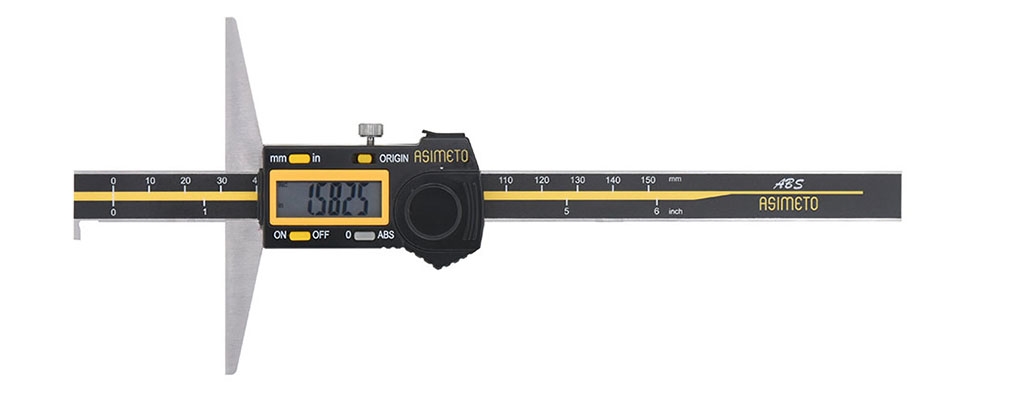

Series 322

FEATURES

  • Resolution: .0005" / 0.01mm
  • The stationary measuring surface on the beam protrudes at right angles (measuring hook) to allow for the measurement of depths, internal groove positions, and other intricate characteristics
  • Measurements can be taken on either side of the measuring hook
  • All measuring surfaces are hardened
  • Cable data output: 900-05-4/5
  • Wireless data output:
    Transmitter: 901-00-4/6
    Receiver: 901-00-3


STANDARD ACCESSORIES

  • Battery
  • Warranty card, Calibration certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeGraduationAccuracyCode No.
0-6" / 0-150mm .0005" ± .001" 322-06-7
0-8" / 0-200mm .0005" ± .0015" 322-08-7
0-12" / 0-300mm .0005" ± .0015" 322-12-7
RangeGraduationAccuracyCode No.
0-150mm / 0-6" 0.01mm ± 0.03mm 322-06-7
0-200mm / 0-8" 0.01mm ± 0.03mm 322-08-7
0-300mm / 0-12" 0.01mm ± 0.04mm 322-12-7
