Series 322

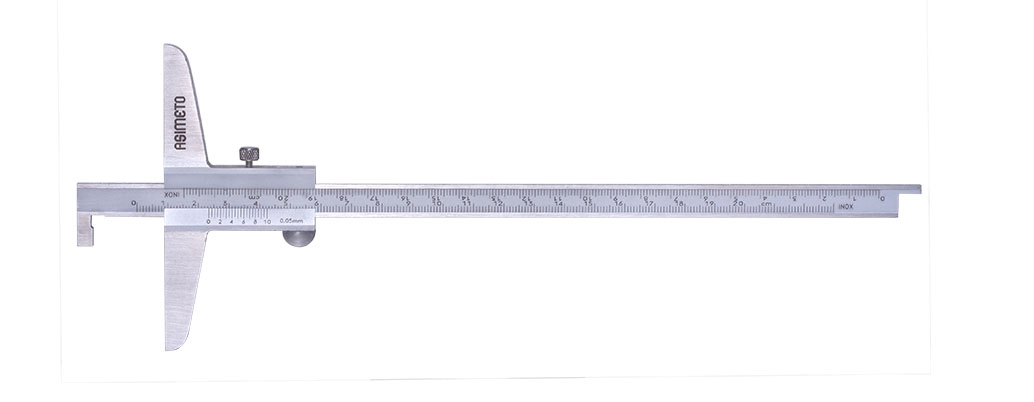

Vernier Depth Calipers With Single Hook
Series 322
FEATURES
Resolution: .001" / 0.05mm
The stationary measuring surface on the beam protrudes at right angles (measuring hook) to allow for the measurement of depths, internal groove positions, and other intricate characteristics
Measurements can be taken on either side of the measuring hook
Vernier models are designed allowing the main beam to be reversible with corresponding scales on the slider
All measuring surfaces are hardened
STANDARD ACCESSORIES
Warranty card, Calibration certificate, Instruction manual
Q'ty :
Inquiry
PRODUCT SPECIFICATIONS
INCH
METRIC
Mechanical Models
Range
Graduation
Accuracy
Code No.
0-6" / 0-150mm
.001"
± .001"
322-06-3
0-8" / 0-200mm
.001"
± .0015"
322-08-3
0-12" / 0-300mm
.001"
± .0015"
322-12-3
Range
Graduation
Accuracy
Code No.
0-150mm / 0-1"
0.05mm
± 0.05mm
322-06-2
0-200mm / 1-2"
0.05mm
± 0.05mm
322-08-2
0-300mm / 2-3"
0.05mm
± 0.08mm
322-12-2
