Series 483 / 484

FEATURES

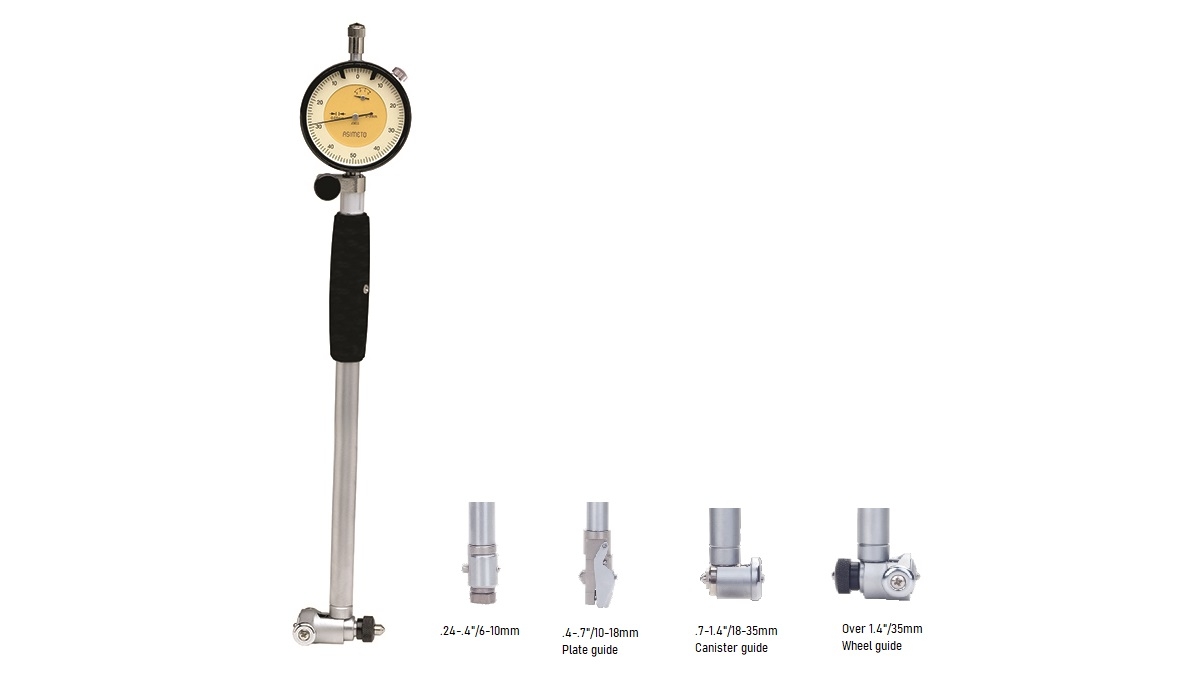

  • Moveable probe pin with carbide ball
  • .24-.4" / 6-10mm range is with fixed anvils
    .4-.74" / 10-18mm range is with plate guide and fixed anvils
    .7-1.4" / 18-35mm range is with canister and fixed anvils
    Over 1.4" / 35mm range is with wheel guide and inserting anvils


STANDARD ACCESSORIES

  • Refer to the table
  • Warranty card, Instruction manual, Calibration certificate

PRODUCT SPECIFICATIONS

RangeGraduationIndividual HolersIndicatorCode No.
18-160mm 0.01mm 18-35mm
35-50mm
50-160mm
402-03-2
3mmx0.01mm
484-63-8
18-160mm 0.001mm 18-35mm
35-50mm
50-160mm
402-01-2
1mmx0.001mm
483-63-8
RangeGraduationDial TravelAccuracyCode No.
.24-.4" .0001" .05"
(AGD1)
.0002" 483-11-1
.4-.7" .0001" .05"
(AGD1)
.0003" 483-12-1
.7-1.5" .0001" .05"
(AGD2)
.0003" 483-21-1
1.4-2.4" .0001" .05"
(AGD2)
.0003" 483-22-1
2-6" .0001" .05"
(AGD2)
.0003" 483-31-1
6-10" .0001" .05"
(AGD2)
.0003" 483-32-1
10-16" .0001" .05"
(AGD2)
.0003" 483-33-1
RangeGraduationDial TravelAccuracyCode No.
6-10mm 0.001mm 1mm (AGD1) 0.005mm 483-11-0
10-18mm 0.001mm 1mm (AGD1) 0.007mm 483-12-0
18-35mm 0.001mm 1mm (AGD2) 0.007mm 483-21-0
35-50mm 0.001mm 1mm (AGD2) 0.007mm 483-22-0
50-160mm 0.001mm 1mm (AGD2) 0.007mm 483-31-0
160-250mm 0.001mm 1mm (AGD2) 0.007mm 483-32-0
250-500mm 0.001mm 1mm (AGD2) 0.007mm 483-33-0
6-10mm 0.01mm 3mm (AGD1) 0.015mm 484-11-0
10-18mm 0.01mm 3mm (AGD1) 0.015mm 484-12-0
18-35mm 0.01mm 3mm (AGD2) 0.020mm 484-21-0
35-50mm 0.01mm 3mm (AGD2) 0.020mm 484-22-0
50-160mm 0.01mm 3mm (AGD2) 0.025mm 484-31-0
160-250mm 0.01mm 3mm (AGD2) 0.025mm 484-32-0
250-500mm 0.01mm 3mm (AGD2) 0.025mm 484-33-0
400-600mm 0.01mm 3mm (AGD2) 0.025mm 484-34-0
