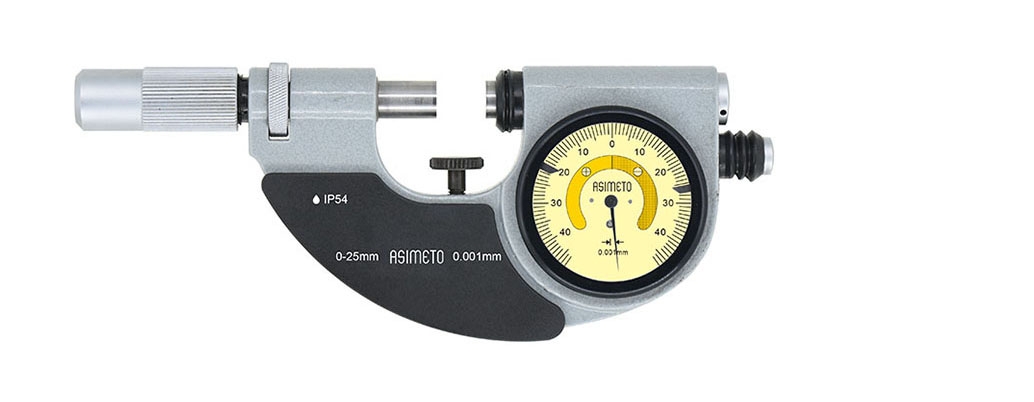

Dial Snap Gauges

Series 152
Dial Snap Gauges
  • Dial Snap Gauges

FEATURES

  • Protection level IP54
  • Carbide tipped measuring faces, spindle diameter Ø10
  • Dial indication accuracy: 0.001mm / .00005"
  • Dial range ±0.04mm / ± .0015"
  • Direct GO/NG judgment
  • Big size indicator, easy to be read
  • Measuring force 5-10N
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyCode No.　
0-1" ± .00005" 152-01-5
1-2" ± .00005" 152-02-5
2-3" ± .00005" 152-03-5
3-4" ± .00005" 152-04-5
RangeAccuracyCode No.
0-25mm ± 0.001mm 152-01-4
25-50mm ± 0.001mm 152-02-4
50-75mm ± 0.001mm 152-03-4
75-100mm ± 0.001mm 152-04-4
