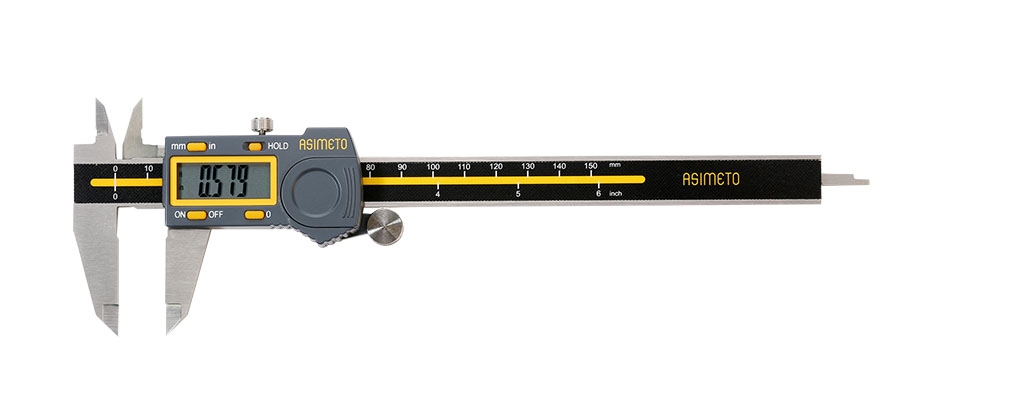

Series 307

FEATURES

  • Resolution: .0005" / 0.01mm
  • The origin position is retained through the On/Off cycle
  • Inch/Metric conversion

PRODUCT SPECIFICATIONS

RangeAccuracyCode No.
0-6" / 0-150mm ± .001" 307-06-5
0-8" / 0-200mm ± .0015" 307-08-5
0-12" / 0-300mm ± .0015" 307-12-5
RangeAccuracyCode No.
0-150mm / 0-6" ± 0.02mm 307-06-5
0-200mm / 0-6" ± 0.03mm 307-08-5
0-300mm / 0-6" ± 0.03mm 307-12-5
RangeAccuracyCode No.
0-6" / 0-150mm ± .001" 307-06-4
0-8" / 0-200mm ± .0015" 307-08-4
0-12" / 0-300mm ± .0015" 307-12-4
RangeAccuracyCode No.
0-150mm / 0-6" ± 0.02mm 307-06-4
0-200mm / 0-6" ± 0.03mm 307-08-4
0-300mm / 0-6" ± 0.03mm 307-12-4
