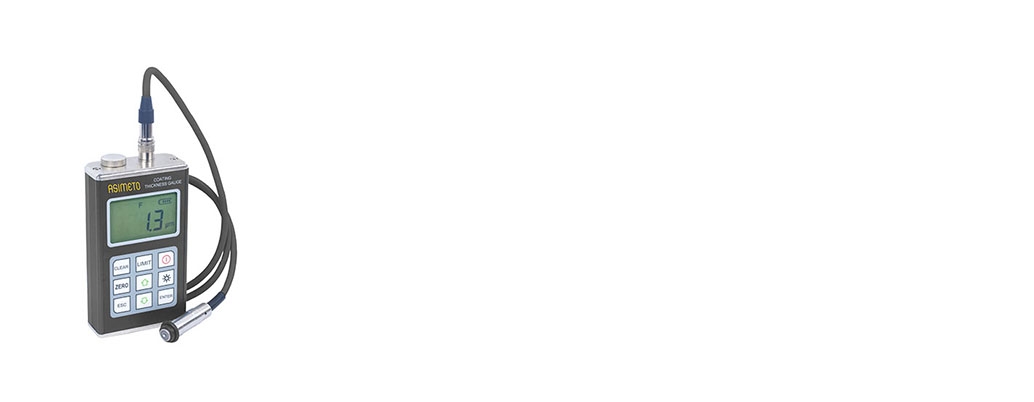

Series 506

FEATURES

  • Fast, non-destructive, precise measurement of various coating thicknesses and material  thicknesses. Widely used in manufacturing where a coating has been applied to a base material or applications where the wall thickness requires measurement.
  • The system incorporates magnetic and eddy current technologies for multipurpose  measurements. By selecting the appropriate probe the thickness of the non-ferrous coatings on ferrous base metals or non-ferrous coatings on non-ferrous metal substrates.
  • Data storage capacity of 20 groups of 50 actual measured values.
  • Metric / Inch conversion
  • Working voltage: 3V (2, 5 alkaline batteries).
  • Two individual probe calibration methods are supported. calibration compensation of  system error increases the measurement accuracy.
  • Measuring status indicator displays the measuring status and type of measurement.
  • Measured values and user information are shown on a large, easy-to-read LCD. a back lit  display ensures easy reading of the data in poorly-lit environments.
  • Battery level indicator provides the remaining battery voltage.
  • Auto sleep and auto power off functions increases battery life.
  • Compact aluminum case provides storage protection.

STANDARD ACCESSORIES

  • Probe                             1 pc
  • Calibration Foils         5 pcs
  • Zero plate                     1 pc
  • Manual                           1 pc
  • Alkaline Battery          2 pcs

PRODUCT SPECIFICATIONS

RangeResolutionProbesNotesCode No.
0-1250 μm 0.1 μm N1 For measuring thickness of non-conductive,
non-magnetic coating on non-magnetic metal substrate
506-10-0
0-1250 μm 0.1 μm F1 For measuring thickness of non-magnetic coating on magnetic metal substrate 506-10-1
0-10000 μm 0.1 μm F10 For measuring thickness of non-magnetic coating on magnetic metal substrate 506-10-3
RangeResolutionProbesNotesCode No.
0-1250 μm 0.1 μm N1 For measuring thickness of non-conductive,
non-magnetic coating on non-magnetic metal substrate
506-10-0
0-1250 μm 0.1 μm F1 For measuring thickness of non-magnetic coating on magnetic metal substrate 506-10-1
0-10000 μm 0.1 μm F10 For measuring thickness of non-magnetic coating on magnetic metal substrate 506-10-3
