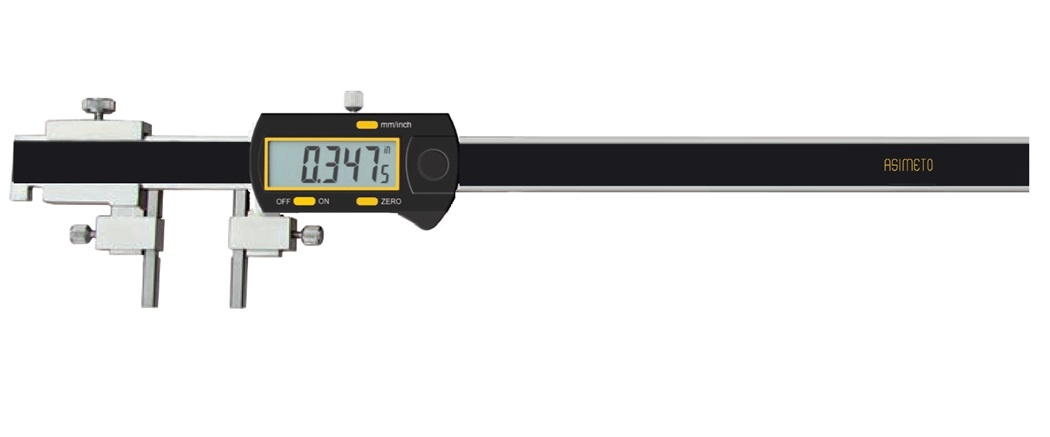

Digital Cylinder Head Center Distance Calipers 314

Series 314
Digital Cylinder Head Center Distance Calipers 314
  • Digital Cylinder Head Center Distance Calipers 314

FEATURES

  • Resolution: .0005" / 0.01mm
  • Inch/Metric conversion
  • Used to measure center distance and edge distance of holes
  • Automatic off to maximize battery life
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyCode No.
.197-6" / 5-150mm ± .002" 314-06-1
.197-8" / 5-200mm ± .002" 314-08-1
.197-12” / 5-300mm ± .003" 314-12-1
RangeAccuracyCode No.
5-150mm / .197-6" ± 0.04mm 314-06-1
5-200mm / .197-8" ± 0.04mm 314-08-1
12
5-300mm / .197-12" ± 0.05mm 314-12-1
