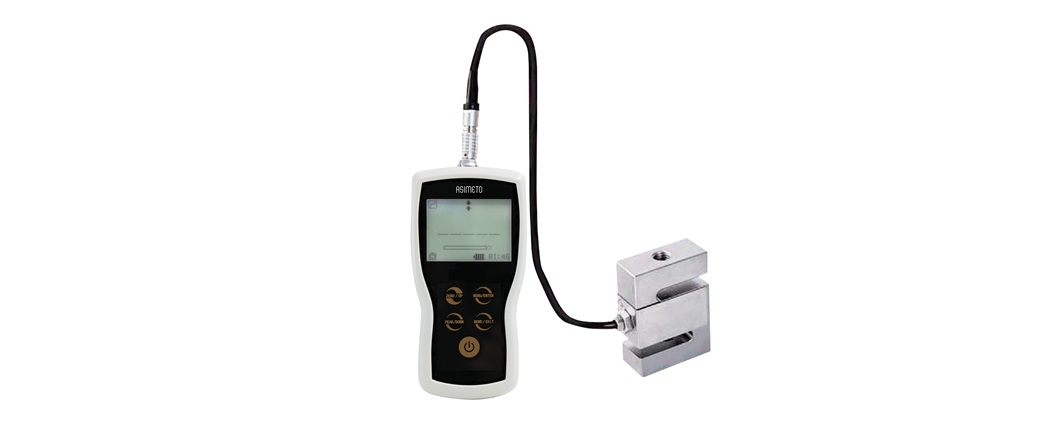

Digital Force Gauge

Series 701
Digital Force Gauge
  • Digital Force Gauge

FEATURES

  • Automatic sensor detection for Push, Pull and Pressure test.
  • Units options: N, kgf, lbf, gf, ozf, KN
  • Overload protection mechanism.
  • Physical buttons to minimize disturbance.
  • Graphic or Numerical display mode
  • Automatic reversible display.
  • Upper and lower limit alarms and conclusion output.
  • Automatic power off.
  • Metal case.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
ModelSensor
Model		RangeResolutionAccuracyTesting
Mode		Code No.　
ASFG10S-2K-S ASP-F2K-S 2,000 N 0.5 N ±0.2% F.S. Push, Pull 701-50-0
ASFGS10S-5K-S ASP-F5K-S 5,000 N 0.5 N ±0.2% F.S. Push, Pull 701-50-1
ASFGS10S-10K-S ASP-F10K-S 10,000 N 1 N ±0.2% F.S. Push, Pull 701-50-2
ASFGS10S-10K-R ASP-F10K-R 10,000 N 1 N ±0.2% F.S. Pressure 701-50-3
ASFGS10S-50K-R ASP-F50K-R 50,000 N 5 N ±0.2% F.S. Pressure 701-50-4
ASFGS10S-100K-R ASP-F100K-R 100,000 N 10 N ±0.2% F.S. Pressure 701-50-5
ASFGS10S-200K-R ASP-F100K-R 200,000 N 50 N ±0.2% F.S. Pressure 701-50-6
ModelSensor
Model		RangeResolutionAccuracyTesting
Mode		Code No.　
ASFG10S-2K-S ASP-F2K-S 2,000 N 0.5 N ±0.2% F.S. Push, Pull 701-50-0
ASFGS10S-5K-S ASP-F5K-S 5,000 N 0.5 N ±0.2% F.S. Push, Pull 701-50-1
ASFGS10S-10K-S ASP-F10K-S 10,000 N 1 N ±0.2% F.S. Push, Pull 701-50-2
ASFGS10S-10K-R ASP-F10K-R 10,000 N 1 N ±0.2% F.S. Pressure 701-50-3
ASFGS10S-50K-R ASP-F50K-R 50,000 N 5 N ±0.2% F.S. Pressure 701-50-4
ASFGS10S-100K-R ASP-F100K-R 100,000 N 10 N ±0.2% F.S. Pressure 701-50-5
ASFGS10S-200K-R ASP-F100K-R 200,000 N 50 N ±0.2% F.S. Pressure 701-50-6
