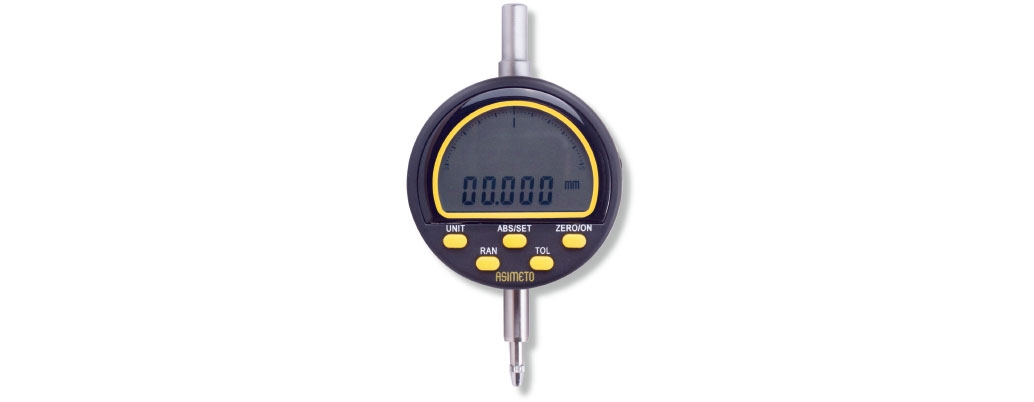

Digital Indicators With Analog Display

Series 406 / 407
Digital Indicators With Analog Display
  • Digital Indicators With Analog Display

FEATURES

  • Resolution: .00005" / 0.002mm, 0.001mm
  • Absolute measurement
  • 330 deg. screen rotation
  • Inch/Metric conversion
  • Auto power On/Off
  • Flat back (attached) and lug back supplied
  • Ø8mm stem diameter for metric models
    Ø3/8" stem diameter for inch models


STANDARD ACCESSORIES

  • Battery, Lug back
  • Warranty card, Calibration certificate, Instruction manual
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeResolutionAccuracyCode No.
0-.25" / 6.35mm .00005" ±.0003" 406-25-1
0-.5" / 12.5mm .00005" ±.0003" 406-05-1
0-1" / 25mm .00005" ±.0006" 406-01-1
RangeResolutionAccuracyCode No.
6.35mm / 0-.5" 0.002mm 0.006m m 406-25-0
12.5mm / 0-1" 0.002mm 0.008mm 406-05-0
25mm / 0-2" 0.002mm 0.015mm 406-01-0
6.35mm / 0-.25" 0.001mm 0.004mm 407-01-0
12.5mm / 0-.5" 0.001mm 0.004mm 407-02-0
25mm / 0-1" 0.001mm 0.005mm 407-03-0
