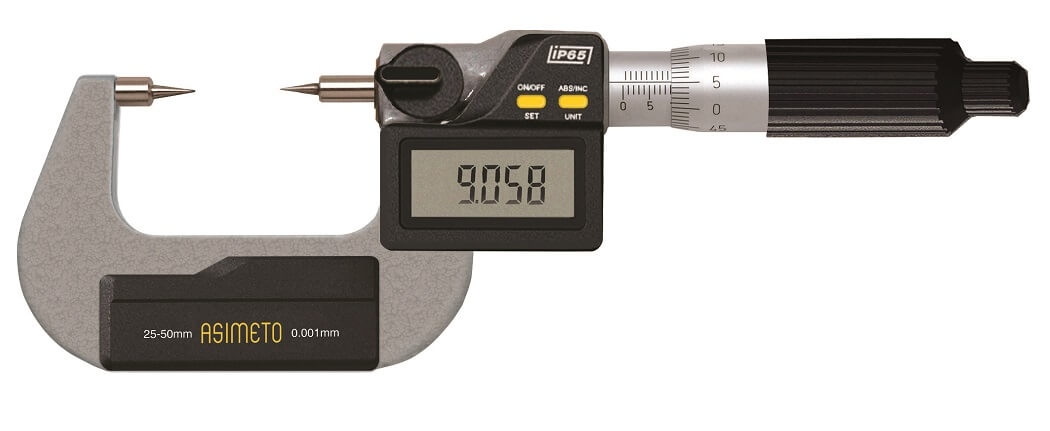

Digital Point Micrometers

Series 126
Digital Point Micrometers
  • Digital Point Micrometers

FEATURES

  • Resolution:
    Digital reading: .00005" / 0.001mm
  • 15° and 30° measuring points are avaiable
  • Protection level IP65
  • For measuring the web thickness of drills, small groove, and other hard to reach dimensions
  • Carbide tipped measuring faces
  • Inch/Metric conversion
  • Read the actual absolute measuring position upon switching on the display
  • Automatic On/Off to maximize battery life
  • Absolute or incremental measuring modes
  • Support Bluetooth data transmission
    Bluetooth data output: 901-01-5
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyAnvil TypeCode No.
0-1"/0-25mm ± .0001" 15° 126-01-1
1-2"/25-50mm ± .0002" 15° 126-02-1
2-3"/50-75mm ± .0002" 15° 126-03-1
3-4"/75-100mm ± .0002" 15° 126-04-1
0-1"/0-25mm ± .0001" 30° 126-01-3
1-2"/25-50mm ± .0002" 30° 126-02-3
2-3"/50-75mm ± .0002" 30° 126-03-3
3-4"/75-100mm ± .0002" 30° 126-04-3
RangeAccuracyAnvil TypeCode No.
0-25mm/0-1" ± 0.002mm 15° 126-01-0
25-50mm/1-2" ± 0.002mm 15° 126-02-0
50-75mm/2-3" ± 0.003mm 15° 126-03-0
75-100mm/3-4" ± 0.003mm 15° 126-04-0
0-25mm/0-1" ± 0.002mm 30° 126-01-2
25-50mm/1-2" ± 0.002mm 30° 126-02-2
50-75mm/2-3" ± 0.003mm 30° 126-03-2
75-100mm/3-4" ± 0.003mm 30° 126-04-2
