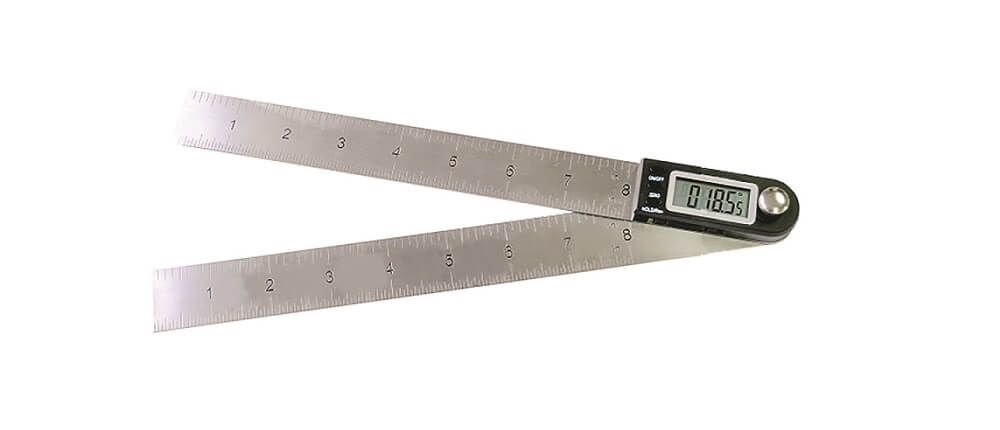

Series 490

FEATURES

  • Measuring range: 0-360°
  • Resolution: 0.05°
  • Accuracy: ± 0.3°
  • ZERO set a any position
  • Lock screw to hold the angle to secure the measurement.
  • Reverse reading for all conditions.

PRODUCT SPECIFICATIONS

Size
(mm)
L
(mm)
A
(mm)
B
(mm)
Code No.
100 178 27.2 1.2 490-52-0
200 277 27.2 1.2 490-52-1
300 380 27.2 1.2 490-52-2
Size
(mm)
L
(mm)
A
(mm)
B
(mm)
Code No.
100 178 27.2 1.2 490-52-0
200 277 27.2 1.2 490-52-1
300 380 27.2 1.2 490-52-2
