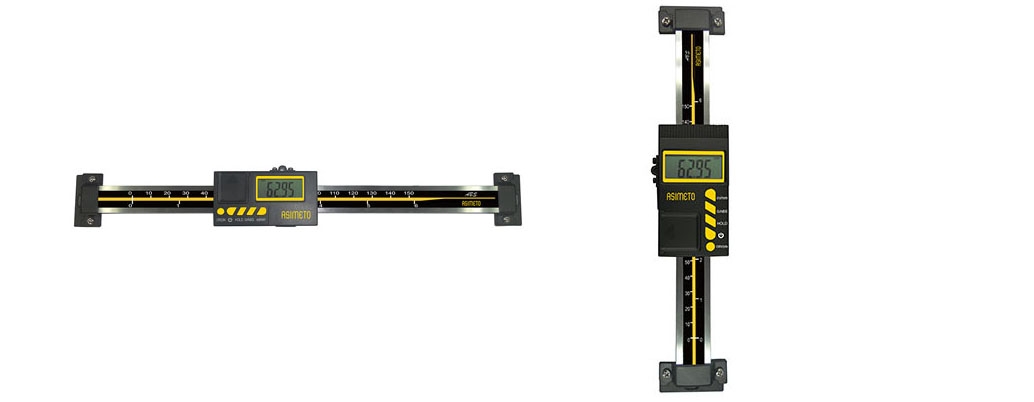

Digital Scales

Series 326
Digital Scales
  • Digital Scales

FEATURES

  • Resolution: .0005" / 0.01mm
  • Units are supplied with the necessary mounting brackets required for most popular installations
  • The displayed readings are available in either absolute (measurement to the zero position) or to an incremental (temporary) zero set position at any position along the scale. Either measurement mode can be selected by pressing the ZERO/ABS button
  • Inch/Metric conversion
  • Data Output:
    Cable data output: 900-05-4/5
    Wireless data output: Transmitter 901-00-4/6 / Receiver 901-00-3
    Bluetooth data output: 901-01-2/4
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyCode No.
4" / 100mm ± .001" 326-04-8
6" / 150mm ± .0015" 326-06-8
8" / 200mm ± .0015" 326-08-8
12" / 300mm ± 0015" 326-12-8
20" / 500mm ± .003" 326-20-8
24" / 600mm ± .003" 326-24-8
32" / 80mm ± .004" 326-32-8
40" / 1000mm ± .004" 326-40-8
RangeAccuracyCode No.
100mm / 4" ± 0.02mm 326-04-8
150mm / 6" ± 0.02mm 326-06-8
200mm / 8" ± 0.03mm 326-08-8
300mm / 12" ± 0.04mm 326-12-8
500mm / 20" ± 0.05mm 326-20-8
600mm / 24" ± 0.06mm 326-24-8
800mm / 32" ± 0.06mm 326-32-8
1000mm / 40" ± 0.07mm 326-40-8
RangeAccuracyCode No.
4" / 100mm ± .001" 326-04-9
6" / 150mm ± .0015" 326-06-9
8" / 200mm ± .0015" 326-08-9
12" / 300mm ± .0015" 326-12-9
20" / 500mm ± .003" 326-20-9
24" / 600mm ± .003" 326-24-9
32" / 80mm ± .004" 326-32-9
40" / 1000mm ± .004" 326-40-9
RangeAccuracyCode No.
100mm / 4" ± 0.02mm 326-04-9
150mm / 6" ± 0.02mm 326-06-9
200mm / 8" ± 0.03mm 326-08-9
300mm / 12" ± 0.04mm 326-12-9
500mm / 20" ± 0.05mm 326-20-9
600mm / 24" ± 0.06mm 326-24-9
800mm / 32" ± 0.06mm 326-32-9
1000mm / 40" ± 0.07mm 326-40-9
