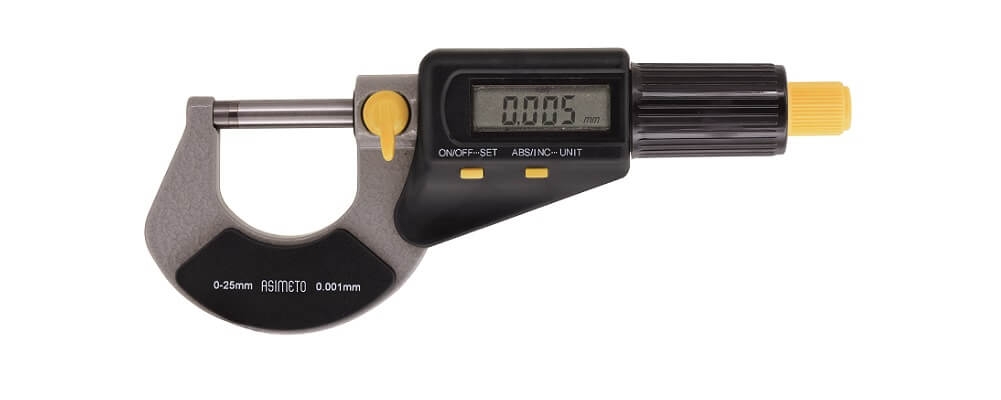

Series 116

FEATURES

  • Resolution: .00005" / 0.001mm
  • Carbide tipped measuring faces
  • Spindle dia.: 0.25"
  • Painted frame
  • Ratchet frction thimble
  • Inch/Metric conversion
  • Absolute or incremental measuring modes
  • Automatic On/Off to maximize battery life

STANDARD ACCESSORIES

  • Battery, Ball Anvil, Standard (over 1'' / 25mm range)
  • Warranty card, Calibration Certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeAccuracyCode No.
0-1" / 0-25mm ± .0001" 116-01-1
1-2" / 25-50mm ± .0002" 116-02-1
2-3" / 50-75mm ± .0002" 116-03-1
3-4" / 75-100mm ± .0002" 116-04-1
4-5" / 100-125mm ± .0002" 116-05-1
5-6" / 125-150mm ± .0002" 116-06-1
6-7" / 150-175mm ± .0002" 116-07-1
7-8" / 175-200mm ± .0002" 116-08-1
RangeAccuracyCode No.
0-25mm / 0-1" ± 0.002mm 116-01-0
25-50mm / 1-2" ± 0.002mm 116-02-0
50-75mm / 2-3"  ± 0.003mm 116-03-0
75-100mm / 3-4"  ± 0.003mm 116-04-0
100-125mm / 4-5"  ± 0.003mm 116-05-0
125-150mm / 5-6" ± 0.003mm 116-06-0
150-175mm / 6-7" ± 0.004mm 116-07-0
175-200mm / 7-8" ± 0.004mm 116-08-0
RangeQuantityCode No.
0-3" / 0-75mm 3 116-63-1
0-4" / 0-100mm 4 116-64-1
RangeQuantityCode No.
0-75mm / 0-3" 3 116-63-0
0-100mm / 0-4" 4 116-64-0
