Series 503 / 504

FEATURES

  • Doubles the range of most of indictors
  • Jeweled movement and easy to read dial
  • Supplied with Xtra-Mag magnetic base
  • Range: 0- .060"
  • Graduation: .0005"
  • Dial Reading 0-15-0
  • Dial Dia.: 1-5/16"
  • 5/32" Stem, dovetail on front and back

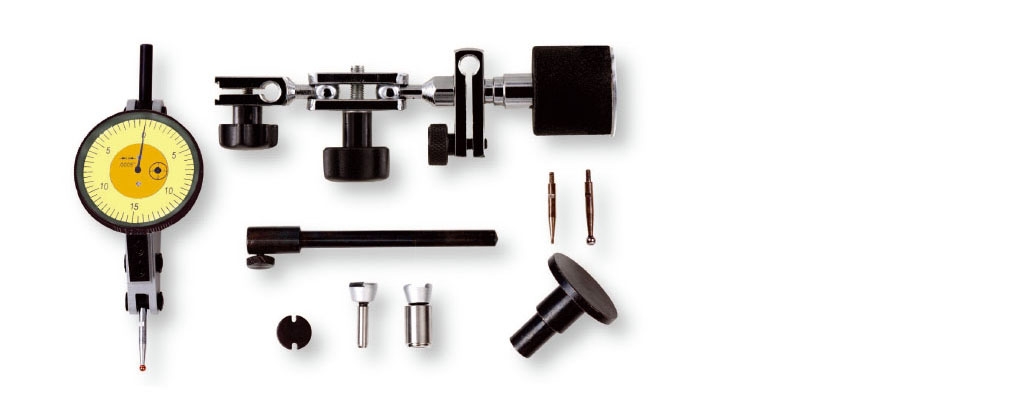

STANDARD ACCESSORIES

  • Warranty card, Instruction manual, Calibration certificate
  • Xtra-Mag magnetic base with 2 universal ball sockets
  • Micro-fine adjustment screw
  • 3-9/16" extension arm
  • Two dovetail stems: 3/8" & 5/32"
  • Three contact points: .04" (hardened steel), .08", .12" (Tungsten Carbide) x 5/8" long

PRODUCT SPECIFICATIONS

RangeGrad.Dial Dia.AccuracyIndicator
Code No.
Code No.
.060” .0005” 1.5” ±0.0012” 504-56-1 504-82-1
RangeGrad.Dial Dia.AccuracyIndicator
Code No.
Code No.
1.6mm 0.01mm 38mm 0.02mm 504-56-0 504-82-0
