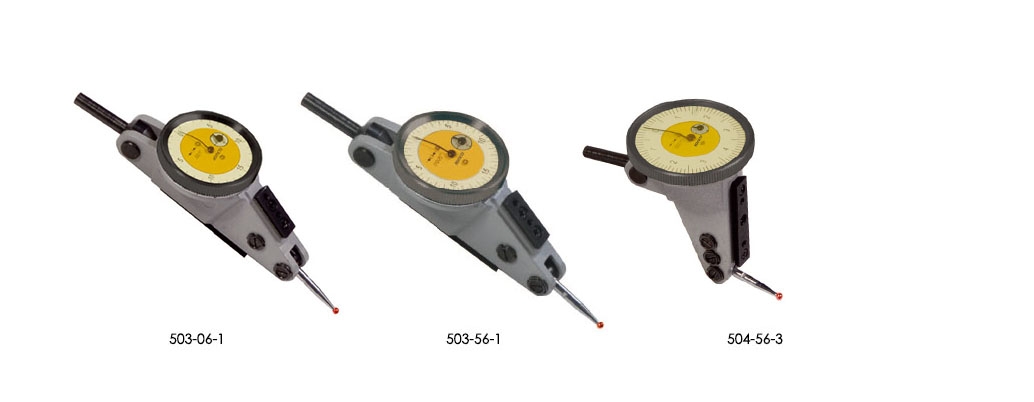

Extended Range Dial Test Indicators

Series 503 / 504
Extended Range Dial Test Indicators
  • Extended Range Dial Test Indicators

FEATURES

  • Graduation:
    Inch: .0005" / .001"
    Metric: 0.01mm
  • Jeweled bearing design and resistant to magnetic fields.
  • Ø4mm stem diameter for metric models.
  • Ø5/32" stem diameter for inch models.
  • Ruby contact point swivel 210 degrees.
  • Horizontal and vertical models are available.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeGraduation Dial ReadingAccuracyNotesCode No.
.060"  .001" 0-15-0 ± .0012" Horizontal 503-06-1
.060" .0005" 0-15-0 ± .0012" Horizontal 503-56-1
.060"  .001" 0-15-0 ± .0012" Vertical 503-06-3
.060" .0005" 0-15-0 ± .0012" Vertical 503-56-3
RangeGraduationDial ReadingAccuracyNotesCode No.
1.6mm 0.01mm 0-40-0 ±0.02mm Horizontal 503-56-0
1.6mm 0.01mm 0-40-0 ±0.02mm Vertical 503-56-2
RangeGraduationDial ReadingAccuracyNotesCode No.
060" .0005" 0-15-0 ± .0012" Horizontal 504-56-1
060" .0005" 0-15-0 ± .0012" Vertical 504-56-3
RangeGraduationDial ReadingAccuracyNotesCode No.
1.6mm 0.01mm 0-40-0 ±0.02mm Horizontal 504-56-0
1.6mm 0.01mm 0-40-0 ±0.02mm Vertical 504-56-2
