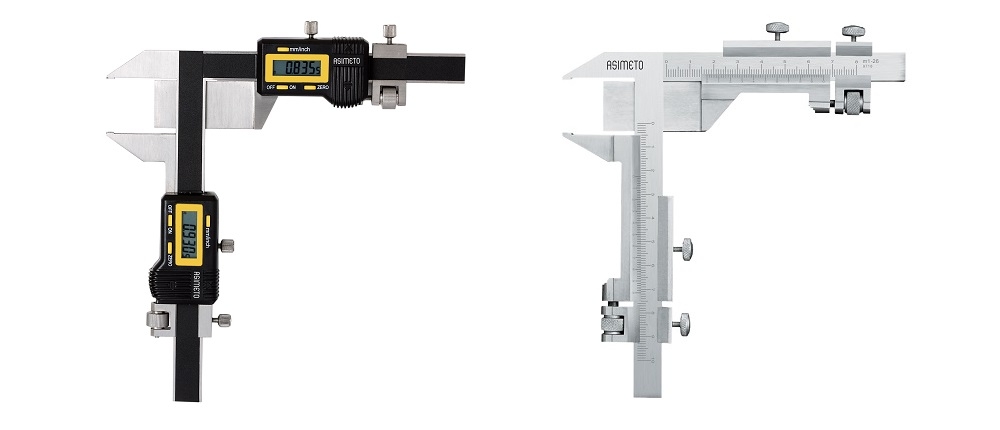

Gear Tooth Calipers

Series 328 / 330
Gear Tooth Calipers
  • Gear Tooth Calipers

FEATURES

  • Resolution:
    Digital: .00005" / 0.01mm
    Vernier: .001" / 0.02mm
  • Measures the chordal gear tooth thickness
  • Zero-setting at any position
  • Inch/Metric conversion
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyCode No.
M.04-1" ± .0015" 328-06-0
M.2-2" ± .0015" 328-06-2
RangeAccuracyCode No.
M1-25 ± 0.03mm 328-06-0
M5-50 ± 0.03mm 328-06-2
RangeAccuracyCode No.
M.04-1" ± .0015" 330-51-0
M.2-2" ± .0015" 330-52-0
RangeAccuracyCode No.
M1-25 ± 0.03mm 330-51-0
M5-50 ± 0.03mm 330-52-0
