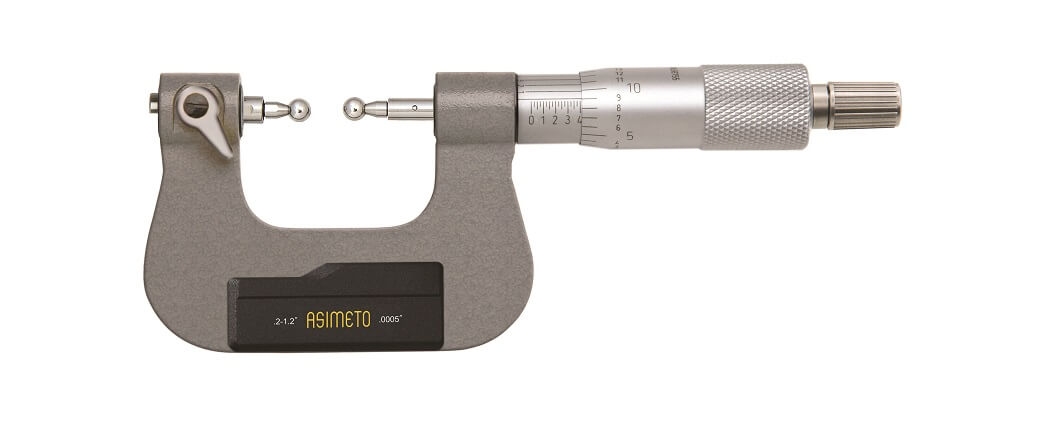

Series 118

FEATURES

  • Resolution: .001" / 0.01mm
  • Measures over-pin diameter of gears with precision steel (carbide) ball-tipped measuring faces
  • Interchangeable ball anvil-spindle tips for various gear modules (0.6-3.5) are optional
  • Set includes 10 pairs Interchangeable anvils

PRODUCT SPECIFICATIONS

RangeAccuracyCode No.
0-1" ± .0001" 118-71-9
1-2" ± .0002" 118-72-9
2-3" ± .0002" 118-73-9
3-4" ± .0002" 118-74-9
4-5" ± .0002" 118-75-9
5-6" ± .0002" 118-76-9
6-7" ± .0002" 118-77-9
RangeAccuracyCode No.
0-25mm 0.004mm 118-71-8
25-50mm 0.004mm 118-72-8
50-75mm 0.005mm 118-73-8
75-100mm 0.005mm 118-74-8
100-125mm 0.006mm 118-75-8
125-150mm 0.006mm 118-76-8
150-175mm 0.007mm 118-77-8
RangeAccuracyCode No.
0-1" ± .0001" 118-71-1
1-2" ± .0002" 118-72-1
2-3" ± .0002" 118-73-1
3-4" ± .0002" 118-74-1
4-5" ± .0002" 118-75-1
5-6" ± .0002" 118-76-1
6-7" ± .0002" 118-77-1
RangeAccuracyCode No.
0-25mm 0.004mm 118-71-0
25-50mm 0.004mm 118-72-0
50-75mm 0.005mm 118-73-0
75-100mm 0.005mm 118-74-0
100-125mm 0.006mm 118-75-0
125-150mm 0.006mm 118-76-0
150-175mm 0.007mm 118-77-0
