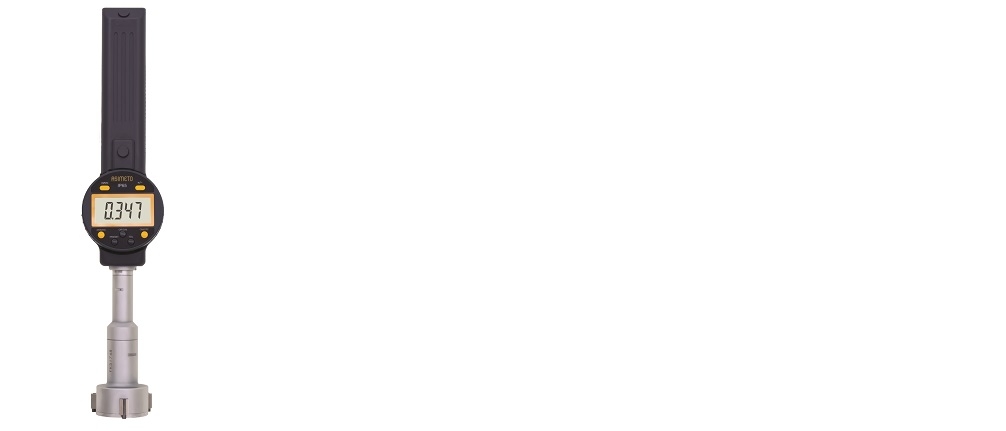

Grip Three Point Internal Micrometers

Series 210
Grip Three Point Internal Micrometers
  • Grip Three Point Internal Micrometers

FEATURES

  • Resolution: .00005" / 0.001mm
  • Build in wireless data transmission
  • Tolerance preset and GO/NG judement
  • Measuring contact points are designed to allow measurements near the bottom of blind holes.
  • Carbide measuring surface (12mm above)
  • Additional extensions can be added to increase the measuring depth
  • 330 rotatable display device, able to read measurement result in different angle
  • Setting rings for origin point setting
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyRod LengthExtension Rod  Code No.　
.275-.35" ±.0001" 2.16" 4” 210-11-1
.35-.425" ±.0001" 2.16" 4” 210-12-1
.425-.5" ±.0001" 2.16" 4” 210-13-1
.5-.65" ±.0001" 3.15" 6” 210-24-1
.65-.8" ±.0001" 3.15" 6” 210-25-1
.8-1.0" ±.0001" 3.54" 6” 210-26-1
1.0-1.2" ±.0002" 3.54" 6” 210-27-1
1.2-1.6" ±.0002" 4.13" 6” 210-28-1
1.6-2.0" ±.0002" 4.13" 6” 210-29-1
2.0-2.5" ±.0002" 5" 6” 210-30-1
2.5-3.0" ±.0002" 5" 6” 210-31-1
3.0-3.5" ±.0002" 5" 6” 210-32-1
3.5-4.0" ±.0002" 5" 6” 210-33-1
RangeAccuracyRod LengthExtension RodCode No.　
6-8mm 0.004mm 55mm 100mm 210-11-0
8-10mm 0.004mm 55mm 100mm 210-12-0
10-12mm 0.004mm 55mm 100mm 210-13-0
12-16mm 0.004mm 80mm 150mm 210-24-0
16-20mm 0.004mm 80mm 150mm 210-25-0
20-25mm 0.004mm 90mm 150mm 210-26-0
25-30mm 0.004mm 90mm 150mm 210-27-0
30-40mm 0.004mm 105mm 150mm 210-28-0
40-50mm 0.004mm 105mm 150mm 210-29-0
50-63mm 0.005mm 127mm 150mm 210-30-0
62-75mm 0.005mm 127mm 150mm 210-31-0
75-88mm 0.005mm 127mm 150mm 210-32-0
87-100mm 0.005mm 127mm 150mm 210-33-0
