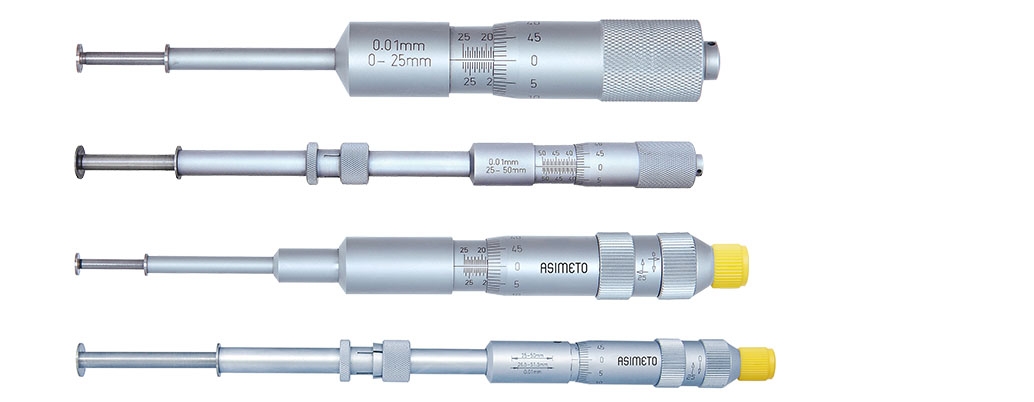

Groove Micrometers

Series 163
Groove Micrometers
  • Groove Micrometers

FEATURES

  • Graduation: .001" / 0.01mm
  • Non-rotating spindle with bi-directional ratchet stop
  • Contact faces allow for the measurement of both internal and external grooves, width and flank
  • Individual scale readings are provided for inside and outside measurements
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Flange Dia.Outside Range Inside Range AccuracyNotesCode No.
6.5mm 0-1" .06-1.05" ± .001" W/O Measuring
Force		 163-01-1
13mm 0-1" .06-1.05" ± .001" W/O Measuring
Force		 163-01-3
13mm 1-2" 1.05-2.05" ± .001" W/O Measuring
Force		 163-02-3
13mm 2-3" 2.05-3.05" ± .001" W/O Measuring
Force		 163-03-3
13mm 3-4" 3.05-4.05" ± .001" W/O Measuring
Force		 163-04-3
6.5mm 0-1" .06-1.05" ± .001" 2 Directional
Measuring Force		 163-61-1
13mm 0-1" .06-1.05" ± .001" 2 Directional
Measuring Force		 163-61-3
13mm 1-2" 1.05-2.05" ± .001" 2 Directional
Measuring Force		 163-62-3
13mm 2-3" 2.05-3.05" ± .001" 2 Directional
Measuring Force		 163-63-3
13mm 3-4" 3.05-4.05" ± .001" 2 Directional
Measuring Force		 163-64-3
Flange Dia.Outside Range Inside Range AccuracyNotesCode No.
6.5mm 0-25mm 1.6-26.5mm 0.01mm W/O Measuring
Force		 163-01-0
13mm 0-25mm 1.6-26.5mm 0.01mm W/O Measuring
Force		 163-01-2
13mm 25-50mm 26.5-51.5mm 0.01mm W/O Measuring
Force		 163-02-2
13mm 50-75mm 51.5-76.5mm 0.01mm W/O Measuring
Force		 163-03-2
13mm 75-100mm 76.5-101.5mm 0.01mm W/O Measuring
Force		 163-04-2
6.5mm 0-25mm 1.6-26.5mm 0.01mm 2 Directional
Measuring Force		 163-61-0
13mm 0-25mm 1.6-26.5mm 0.01mm 2 Directional
Measuring Force		 163-61-2
13mm 25-50mm 26.5-51.5mm 0.01mm 2 Directional
Measuring Force		 163-62-2
13mm 50-75mm 51.5-76.5mm 0.01mm 2 Directional
Measuring Force		 163-63-2
13mm 75-100mm 76.5-101.5mm 0.01mm 2 Directional
Measuring Force		 163-64-2
