Hydraulic Magnetic Bases

Series 603

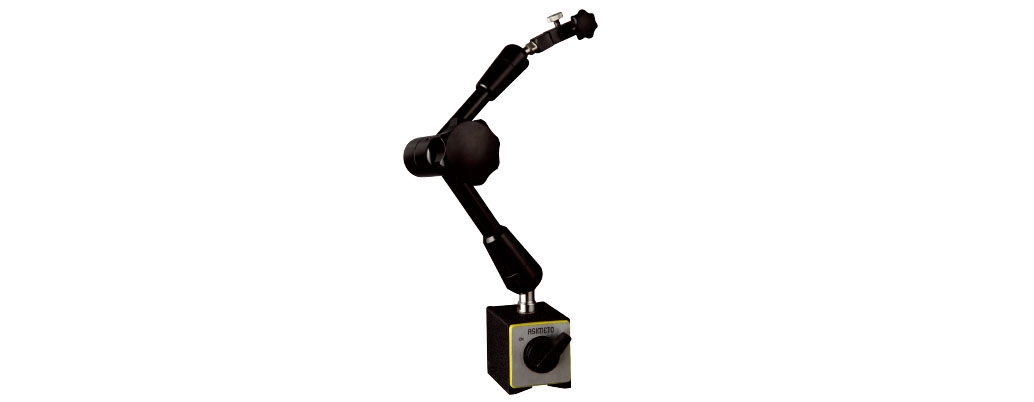

Hydraulic Magnetic Bases
  • Hydraulic Magnetic Bases

FEATURES

  • Accepts test indicators with dovetail clamping mechanism.
  • Dial gauges can be held by the 3/8" or 8mm diameter stem or by the lug backing plate.
  • The rotary knob switches natural magnet On or Off.
  • The precision surfaces and the bottom V are securely fastened to the ferrous workpiece or machine table when the rotary knob is in the on position.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Magnetic
Power		Base
(L x W x H)		Arm
(L1)		Arm
(L2)		Arm
(L3)		Arm
(L)		Dia. of
Hole		SlotCode No.
80 kgf 60x50x55mm 120mm 116mm 76mm 337mm Φ3/8"
Φ8mm		 6.5mm 603-01-0
Magnetic
Power		Base
(L x W x H)		Arm
(L1)		Arm
(L2)		Arm
(L3)		Arm
(L)		Dia. of
Hole		SlotCode No.
80 kgf 60x50x55mm 120mm 116mm 76mm 337mm Φ3/8"
Φ8mm		 6.5mm 603-01-0
