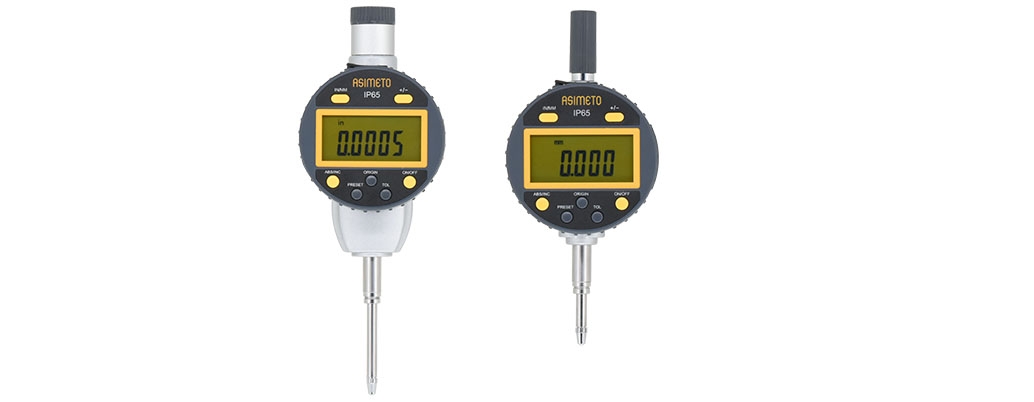

Series 407

FEATURES

  • Resolution:
    Inch: .0005" / .00005"
    Metric: 0.01mm / 0.001mm
  • Absolute measurement feature allows for the upper and lower tolerance for maximum and minimum
  • Inch/Metric and ABS/INC conversion
  • Flat back (attached) and lug back supplied
  • Ø8mm stem diameter for metric models Ø3/8" stem diameter for inch models
  • 330 deg. screen rotation
  • Cable data output: 900-07-0/1
  • Wireless data output:
    Transmitter: 901-00-2/7
    Receiver: 901-00-3


STANDARD ACCESSORIES

  • Battery, Lug back, Lifting lever (Only for size 1" / 25mm or above)
  • Warranty card, Calibration certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeAccuracyThimbleCode No.
0-.5" / 0-12.5mm .0005" ±.0015" 407-01-3
0-1" / 0-25mm .0005" ±.0015" 407-02-3
0-2" / 0-50mm .0005" ±.0015" 407-03-3
0-.5" / 0-12.5mm .0005" ±.0015" 407-01-5
0-1" / 0-25mm .0005" ±.0015" 407-02-5
0-2" / 0-50mm .0005" ±.0015" 407-03-5
RangeAccuracyThimbleCode No.
0-12.5mm / 0-.5" 0.01mm ±0.02mm 407-01-2
0-25mm / 0-1" 0.01mm ±0.02mm 407-02-2
0-50mm / 0-2" 0.01mm ±0.02mm 407-03-2
0-12.5mm / 0-.5" 0.001mm ±0.004mm 407-01-4
0-25mm / 0-1" 0.001mm ±0.005mm 407-02-4
0-50mm / 0-2" 0.001mm ±0.006mm 407-03-4
