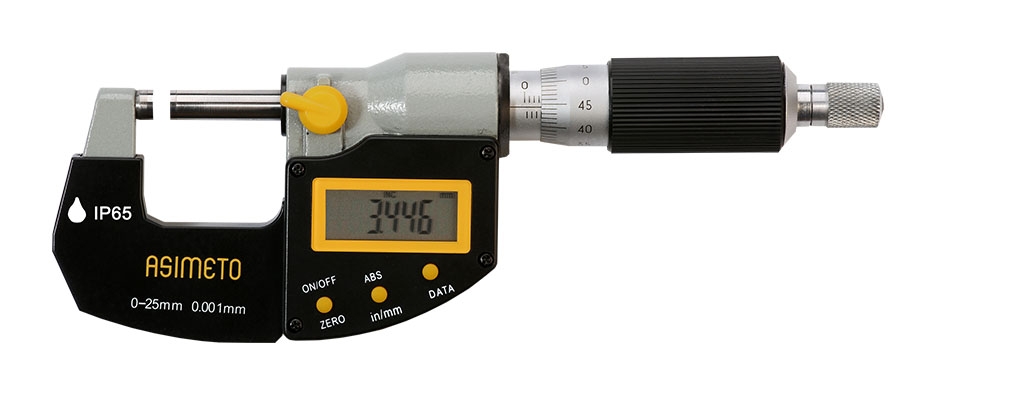

Series 105

FEATURES

  • Resolution: .00005" / 0.001mm
  • Flatness: 0.000012" / 0.3µm
  • Protection level IP65
  • Cable data output: 900-05-4/5
  • Wireless data output:
    Transmitter: 901-00-4/6
    Receiver: 901-00-3
  • Carbide tipped measuring faces
  • Read the actual absolute measuring position after switching on the display
  • Automatic off to maximize battery life
  • Inch/Metric conversion
  • Absolute or incremental measuring modes


STANDARD ACCESSORIES

  • S-wrench, Battery, Ball anvil, Standard (over 1" / 25mm range)
  • Warranty card, Calibration certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeAccuracyThimbleCode No.
0-1" / 0-25mm ± .0001" Dual Ratchets 105-01-5
1-2" / 25-50mm ± .0002" Dual Ratchets 105-02-5
2-3" / 50-75mm ± .0002" Dual Ratchets 105-03-5
3-4" / 75-100mm ± .0002" Dual Ratchets 105-04-5
4-5" / 100-125mm ± .0002" Dual Ratchets 105-05-5
5-6" / 125-150mm ± .0002" Dual Ratchets 105-06-5
RangeAccuracyThimbleCode No.
0-25mm / 0-1" ± 0.002mm Dual Ratchets 105-01-4
25-50mm / 1-2" ± 0.002mm Dual Ratchets 105-02-4
50-75mm / 2-3" ± 0.003mm Dual Ratchets 105-03-4
75-100mm / 3-4" ± 0.003mm Dual Ratchets 105-04-4
100-125mm / 4-5" ± 0.003mm Dual Ratchets 105-05-4
125-150mm / 5-6" ± 0.003mm Dual Ratchets 105-06-4
RangeQuantityThimbleCode No.
0-3" / 0-75mm 3 Dual Ratchets 105-63-9
0-4" / 0-100mm 4 Dual Ratchets 105-64-9
0-6" / 0-150mm 6 Dual Ratchets 105-66-9
RangeQuantityThimbleCode No.
0-75mm / 0-3" 3 Dual Ratchets 105-63-8
0-100mm / 0-4" 4 Dual Ratchets 105-64-8
0-150mm / 0-6" 6 Dual Ratchets 105-66-8
