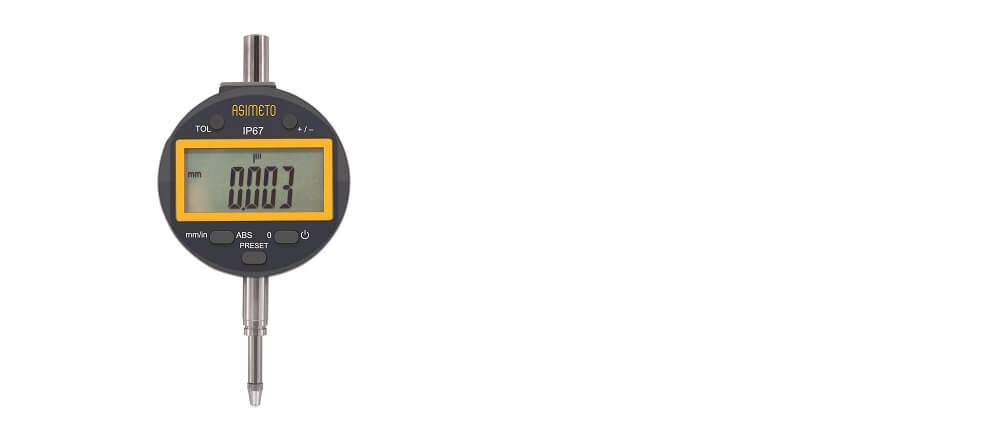

IP67 Digital Indicators

Series 408
IP67 Digital Indicators
  • IP67 Digital Indicators

FEATURES

  • Resolution: .00005" / 0.001mm
  • IP67 Protection level
  • Inductive measurement system
  • Analog display
  • With preset value function, the initial value can be set arbitrarily
  • Tolerance measurement feature allows for the upper and lower tolerance for maximum and minimum
  • ABS / INC conversion
  • Inch/Metric conversion
  • Built in wireless transmission (optional)
  • Automatic power off
  • Cable data output: 900-05-4 / 5
  • Wireless data output:
    Transmitting Device: 901-00-4 / 6
    Receiver Device: 901-00-3


STANDARD ACCESSORIES

  • 1pc Lug Back
  • 1pc Lifting Lever (Only for size 1" / 25mm or above)
  • Battery
  • Warranty card, Calibration certificate, Instruction manual
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyData Output TypeCode No.
0-.5"/0-12.5mm ±.00015" SPC data output 408-01-7
0-1" / 0-25mm ±.00015" SPC data output 408-02-7
0-2" / 0-50mm ±.0002" SPC data output 408-03-7
0-.5"/0-12.5mm ±.00015" With bluetooth 408-01-9
0-1" / 0-25mm ±.00015" With bluetooth 408-02-9
0-2" / 0-50mm ±.0002" With bluetooth 408-03-9
RangeAccuracyData Output TypeCode No.
0-.5"/0-12.5mm 0.004mm SPC data output 408-01-6
0-1" / 0-25mm 0.005mm SPC data output 408-02-6
0-2" / 0-50mm 0.006mm SPC data output 408-03-6
0-.5"/0-12.5mm 0.004mm With bluetooth 408-01-8
0-1" / 0-25mm 0.005mm With bluetooth 408-02-8
0-2" / 0-50mm 0.006mm With bluetooth 408-03-8
