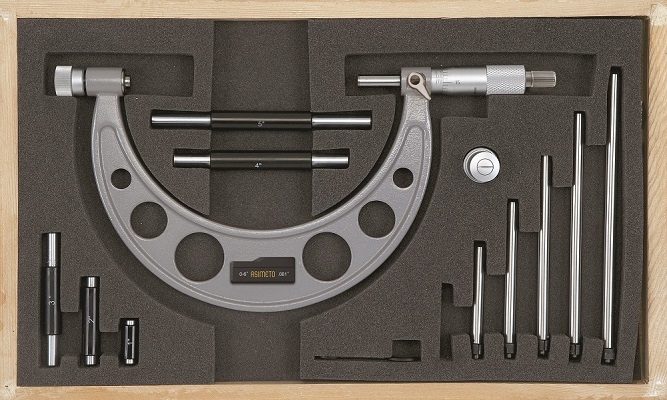

Series 111

FEATURES

  • Resolution: .001" / 0.01mm
  • Flatness: .00004" / 1µm
  • Ratchet stop
  • Interchangeable anvils provide wider measuring ranges
  • Carbide tipped measuring faces
  • Grey painted steel frame for models up to 12" / 300mm
  • Grey welded pipe frame for models over 12" / 300mm models


STANDARD ACCESSORIES

  • S-wrench, Standards, Interchangeable anvils, Torque wrench, 2 Guiding rings
  • Warranty card, Calibration certificate, Instruction manual

PRODUCT SPECIFICATIONS

RangeAccuracyAnvils StandardsCode No.
0-6" ± .0002" 6 pcs  5 pcs 111-06-1
6-12" ± .0003" 6 pcs 6 pcs 111-12-1
0-4" ± .0002" 4 pcs 3 pcs 111-04-7
4-8" ± .0003" 4 pcs 4 pcs 111-08-7
8-12" ± .0003" 4 pcs  4 pcs 111-12-7
12-16" ± .0004" 4 pcs   2 pcs 111-16-1
16-20" ± .0005" 4 pcs  2 pcs 111-20-1
20-24" ± .0006" 4 pcs  2 pcs 111-24-1
24-28" ± .0006" 4 pcs 2 pcs 111-28-1
28-32" ± .0007" 4 pcs 2 pcs 111-32-1
32-36" ± .0008" 4 pcs     2 pcs 111-36-1
36-40" ± .0008" 4 pcs 2 pcs 111-40-1
RangeAccuracyAnvils StandardsCode No.
0-150mm 0.006mm 6 pcs  5 pcs 111-06-0
150-300mm 0.008mm 6 pcs 6 pcs 111-12-0
0-100mm 0.005mm 4 pcs 3 pcs 111-04-6
100-200mm 0.007mm 4 pcs 4 pcs 111-08-6
200-300mm 0.009mm 4 pcs  4 pcs 111-12-6
300-400mm 0.011mm 4 pcs   2 pcs 111-16-0
400-500mm 0.013mm 4 pcs  2 pcs 111-20-0
50-600mm 0.015mm 4 pcs  2 pcs 111-24-0
600-700mm 0.016mm 4 pcs 2 pcs 111-28-0
700-800mm 0.018mm 4 pcs 2 pcs 111-32-0
800-900mm 0.020mm 4 pcs     2 pcs 111-36-0
900-1000mm 0.020mm 4 pcs 2 pcs 111-40-0
