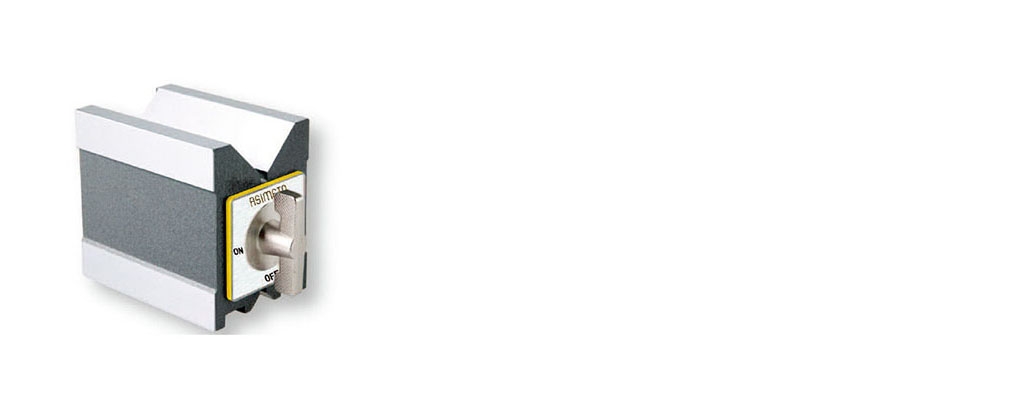

Magnetic V-Blocks

Series 609
Magnetic V-Blocks
  • Magnetic V-Blocks

FEATURES

  • Used for grinding, light milling, drilling & inspection of round & square jobs.
  • The top (V surface) and the end face can be adsorbed.
  • The switch lever can be loaded and unloaded.
  • Constitute a set of two.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Magnetic
Power		BaseAWeightUnitCode No.　
60 kgf 70x60x72mm 36mm 1.6kg Pair 609-10-0
70 kgf 80x56x72mm 36mm 1.7kg Pair 609-11-0
80 kgf 125x60x72mm 36mm 3.0kg Pair 609-12-0
70 kgf 100x70x95mm 46mm 4.0kg Pair 609-13-0
80 kgf 115x75x100mm 50mm 5.2kg Pair 609-14-0
60 kgf 70x60x72mm 36mm 1.6kg piece 609-10-1
70 kgf 80x56x72mm 36mm 1.7kg piece 609-11-1
80 kgf 125x60x72mm 36mm 3.0kg piece 609-12-1
70 kgf 100x70x95mm 46mm 4.0kg piece 609-13-1
80 kgf 115x75x100mm 50mm 5.2kg piece 609-14-1
