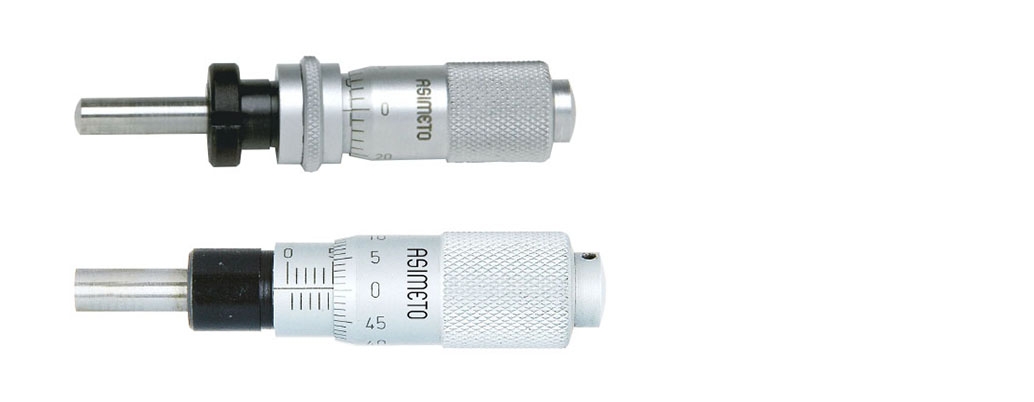

Micrometer Heads

Series 169
Micrometer Heads
  • Micrometer Heads

FEATURES

  • Ratchet stop for 0-25mm range
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyGraduationSpindle
Dia.		Spindle
Lock		Measuring FaceClamp NutCode No.　
0-.5" ± .0001" .001" Φ0.197" W/O Flat W/O 169-05-1
0-.5" ± .0001" .001" Φ0.197" With Flat With 169-05-3
0-.5" ± .0001" .001" Φ0.197" W/O Spherical W/O 169-05-5
0-.5" ± .0001" .001" Φ0.197" With Spherical With 169-05-7
0-.5" ± .0001" .001" Φ0.197" W/O Flat With 169-05-9
0-1" ± .0001" .001" Φ0.256" With Carbide & Flat W/O 169-92-1
0-1" ± .0001" .001" Φ0.256" With Carbide & Flat With 169-92-3
0-1" ± .0001" .001" Φ0.256" With Carbide & Flat W/O 169-92-5
0-1" ± .0001" .001" Φ0.256" With Carbide & Flat With 169-92-7
0-2" ± .0001" .001" Φ0.256" With Carbide & Flat W/O 169-93-1
0-2" ± .0001" .001" Φ0.256" With Carbide & Flat With 169-93-3
0-2" ± .0001" .001" Φ0.256" With Carbide & Flat W/O 169-93-5
0-2" ± .0001" .001" Φ0.256" With Carbide & Flat With 169-93-7
RangeAccuracyGraduationSpindle
Dia.		Spindle
Lock		Measuring FaceClamp NutCode No.　
0-13mm 0.004mm 0.01mm Φ5mm W/O Flat W/O 169-05-0
0-13mm 0.004mm 0.01mm Φ5mm With Flat With 169-05-2
0-13mm 0.004mm 0.01mm Φ5mm W/O Spherical W/O 169-05-4
0-13mm 0.004mm 0.01mm Φ5mm With Spherical With 169-05-6
0-13mm 0.004mm 0.01mm Φ5mm W/O Flat With 169-05-8
0-25mm 0.004mm 0.01mm Φ6.5mm With Carbide & Flat W/O 169-92-0
0-25mm 0.004mm 0.01mm Φ6.5mm With Carbide & Flat With 169-92-2
0-25mm 0.004mm 0.01mm Φ6.5mm With Carbide & Flat W/O 169-92-4
0-25mm 0.004mm 0.01mm Φ6.5mm With Carbide & Flat With 169-92-6
0-50mm 0.004mm 0.01mm Φ6.5mm With Carbide & Flat W/O 169-93-0
0-50mm 0.004mm 0.01mm Φ6.5mm With Carbide & Flat With 169-93-2
0-50mm 0.004mm 0.01mm Φ6.5mm With Carbide & Flat W/O 169-93-4
0-50mm 0.004mm 0.01mm Φ6.5mm With Carbide & Flat With 169-93-6
