Series 642

FEATURES

  • Sharp stereo erect image over a wide field of view.

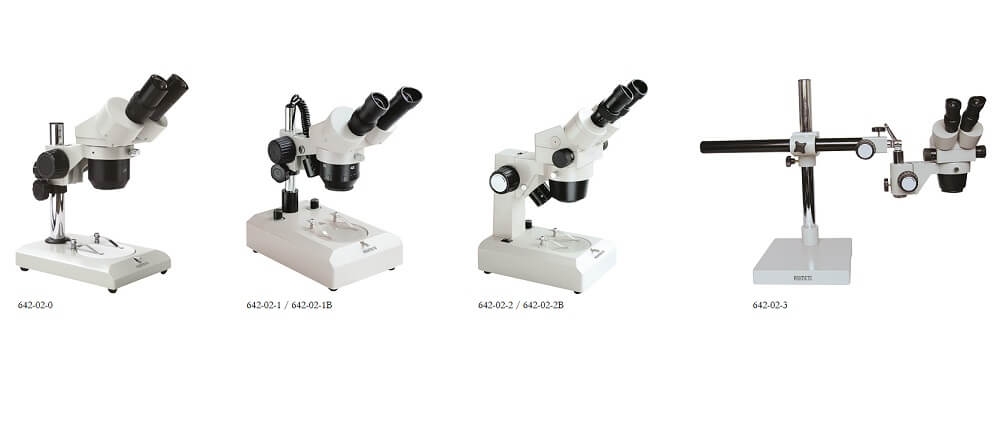

  • Round pillar style stand: 642-02-0 / 642-02-1 / 642-02-1B / 642-02-2 / 642-02-2B
  • Universal stand: 642-02-3

PRODUCT SPECIFICATIONS

Code No.
642-02-0
Objective Zoom Range 1X - 2X
Eyepiece 10X
Working Distance 105mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5
Optical Span Rotation 360°
642-02-1
Objective Zoom Range 2X - 4X
Eyepiece 10X
Working Distance 105mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5
Optical Span Rotation 360°
Voltage Input 110V / 60Hz
Top Halogen Lamp 6V/15W (Adjustable)
Bottom Fluorescent Lamp 5W
642-02-1B
Objective Zoom Range 2X - 4X
Eyepiece 10X
Working Distance 105mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5
Optical Span Rotation 360°
Voltage Input 220V / 50Hz
Top Halogen Lamp 6V/15W (Adjustable)
Bottom Fluorescent Lamp 5W
642-02-2
Zoom Ratio 1:7
Objective Zoom Range 0.65X - 4.5X
Eyepiece 10X
Working Distance 95mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5
Optical Span Rotation 360°
Voltage Input 110V / 60Hz
Top Halogen Lamp 6V/12W (Adjustable)
Bottom Fluorescent Lamp 5W
642-02-2B
Zoom Ratio 1:7
Objective Zoom Range 0.65X - 4.5X
Eyepiece 10X
Working Distance 95mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±50
Optical Span Rotation 360°
Voltage Input 110V / 60Hz
Top Halogen Lamp 6V/12W (Adjustable)
Bottom Fluorescent Lamp 5W
642-02-3
Zoom Ratio 1:7
Objective Zoom Range 0.65X - 4.5X
Eyepiece 10X
Working Distance 95mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5 0
Optical Span Rotation 360°
Code No.
642-02-0
Objective Zoom Range 1X - 2X
Eyepiece 10X
Working Distance 105mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5 0
Optical Span Rotation 360°
642-02-1
Objective Zoom Range 2X - 4X
Eyepiece 10X
Working Distance 105mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5 0
Optical Span Rotation 360°
Voltage Input 110V / 60Hz
Top Halogen Lamp 6V/15W (Adjustable)
Bottom Fluorescent Lamp 5W
642-02-1B
Objective Zoom Range 2X - 4X
Eyepiece 10X
Working Distance 105mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5
Optical Span Rotation 360°
Voltage Input 220V / 50Hz
Top Halogen Lamp 6V/15W (Adjustable)
Bottom Fluorescent Lamp 5W
642-02-2
Zoom Ratio 1:7
Objective Zoom Range 0.65X - 4.5X
Eyepiece 10X
Working Distance 95mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5
Optical Span Rotation 360°
Voltage Input 110V / 60Hz
Top Halogen Lamp 6V/12W (Adjustable)
Bottom Fluorescent Lamp 5W
642-02-2B
Zoom Ratio 1:7
Objective Zoom Range 0.65X - 4.5X
Eyepiece 10X
Working Distance 95mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5
Optical Span Rotation 360°
Voltage Input 110V / 60Hz
Top Halogen Lamp 6V/12W (Adjustable)
Bottom Fluorescent Lamp 5W
642-02-3
Zoom Ratio 1:7
Objective Zoom Range 0.65X - 4.5X
Eyepiece 10X
Working Distance 95mm
Interpupillary Distance Adjustment 55 - 75mm
Binocular Lead 45° Inclination
Diopter Adjustment ±5
Optical Span Rotation 360°
