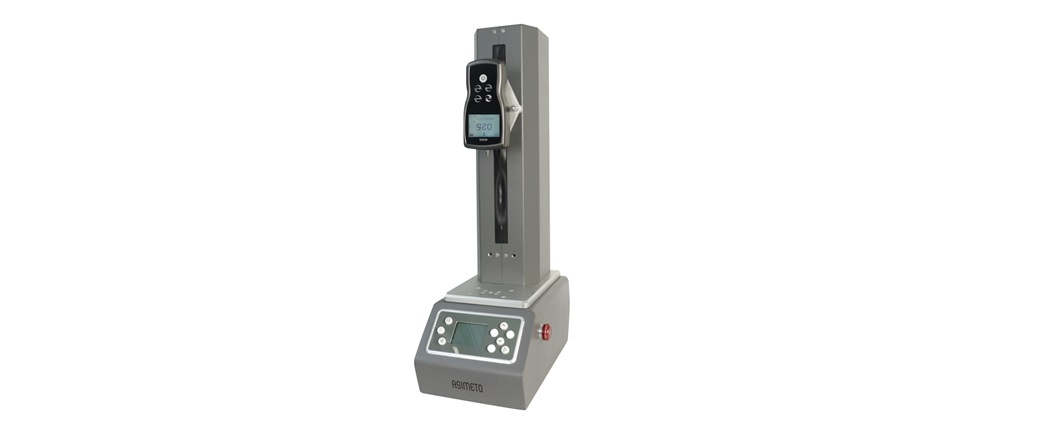

701-39-1 |
|
| Capacity |
650N |
|
|
| Stroke |
220mm |
|
|
Speed
(adjustable range) |
30 - 720 mm/min |
|
|
| Displacement |
Resolution: 0.01mm
Accuracy: ±0.2 mm/min |
|
|
| Operation mode |
Manual, Cycle, Demo, Locating |
|
|
| Protection mode |
Position limit
Force limit (connect to force gauge)
Rotor locked
Power current |
|
|
| Cycle programs |
3-Stages cycle
Displacement-Based cycle (D-Cycle)
Force-Based cycle (F-Cycle) |
|
|
| Outputs |
USB-B
RS232 |
|
|
| Power supply |
AC100-240V, 1A |
|
|
