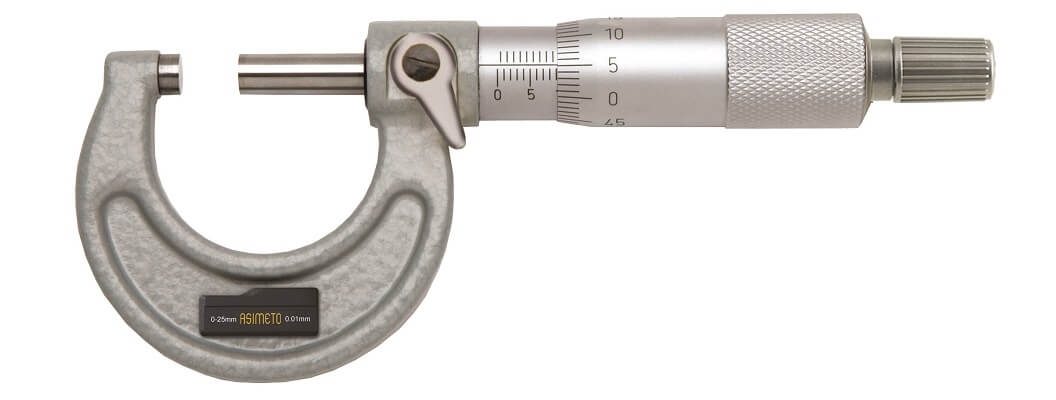

Series 101 / 103

FEATURES

  • Graduation:
    Inch: .001" / .0001"
    Metric: 0.01mm / 0.001mm
  • Flatness: 0.000024'' / 0.6µm
  • Carbide tipped measuring faces
  • Ratchet Stop and Ratchet Thimble are optional
  • Grey painted steel frame

STANDARD ACCESSORIES

  • S-wrench, Standard (over 1'' / 25mm range)
  • Warranty card, Instruction manual, Calibration certificate

PRODUCT SPECIFICATIONS

RangeGraduationAccuracyCode
0-1" .001" ±.0001" 103-01-5
1-2" .001" ±.0002" 103-02-5
0-1" .001" ±.0001" 103-01-5
1-2" .001" ±.0002" 103-02-5
2-3" .001" ± .0002" 103-03-5
3-4" .001" ± .0002" 103-04-5
4-5" .001" ± .0002" 103-05-5
5-6" .001" ± .0002" 103-06-5
6-7" .001" ± .0002" 103-07-5
7-8" .001" ± .0002" 103-08-5
8-9" .001" ± .0002" 103-09-5
9-10" .001" ± .0003" 103-10-5
10-11" .001" ± .0003" 103-11-5
11-12" .001" ± .0003" 103-12-5
0-1" .0001" ± .0001" 103-01-7
1-2" .0001" ± .0002" 103-02-7
2-3" .0001" ± .0002" 103-03-7
3-4" .0001" ± .0002" 103-04-7
4-5" .0001" ± .0002" 103-05-7
5-6" .0001" ± .0002" 103-06-7
6-7" .0001" ± .0002" 103-07-7
7-8" .0001" ± .0002" 103-08-7
8-9" .0001" ± .0002" 103-09-7
9-10" .0001" ± .0003" 103-10-7
10-11" .0001" ± .0003" 103-11-7
11-12" .0001" ± .0003" 103-12-7
RangeGraduationAccuracyCode
0-25mm 0.01mm 0.004mm 103-01-4
25-50mm 0.01mm 0.004mm 103-02-4
50-75mm 0.01mm 0.005mm 103-03-4
75-100mm 0.01mm 0.005mm 103-04-4
100-125mm 0.01mm 0.006mm 103-05-4
125-150mm 0.01mm 0.006mm 103-06-4
150-175mm 0.01mm 0.007mm 103-07-4
175-200mm 0.01mm 0.007mm 103-08-4
200-225mm 0.01mm 0.008mm 103-09-4
225-250mm 0.01mm 0.008mm 103-10-4
250-275mm 0.01mm 0.009mm 103-11-4
275-300mm 0.01mm 0.009mm 103-12-4
0-25mm 0.001mm 0.004mm 103-01-6
25-50mm 0.001mm 0.004mm 103-02-6
50-75mm 0.001mm 0.005mm 103-03-6
75-100mm 0.001mm 0.005mm 103-04-6
100-125mm 0.001mm 0.006mm 103-05-6
125-150mm 0.001mm 0.006mm 103-06-6
150-175mm 0.001mm 0.007mm 103-07-6
175-200mm 0.001mm 0.007mm 103-08-6
200-225mm 0.001mm 0.008mm 103-09-6
225-250mm 0.001mm 0.008mm 103-10-6
250-275mm 0.001mm 0.009mm 103-11-6
275-300mm 0.001mm 0.009mm 103-12-6
RangeGraduationAccuracyCode
0-1" .001" ± .0001" 101-01-1
1-2" .001" ± .0002" 101-02-1
2-3" .001" ± .0002" 101-03-1
3-4" .001" ± .0002" 101-04-1
4-5" .001" ± .0002" 101-05-1
5-6" .001" ± .0002" 101-06-1
6-7" .001" ± .0002" 101-07-1
7-8" .001" ± .0002" 101-08-1
8-9" .001" ± .0002" 101-09-1
9-10" .001" ± .0003" 101-10-1
10-11" .001" ± .0003" 101-11-1
11-12" .001" ± .0003" 101-12-1
0-1" .0001" ± .0001" 101-01-3
1-2" .0001" ± .0002" 101-02-3
2-3" .0001" ± .0002" 101-03-3
3-4" .0001" ± .0002" 101-04-3
4-5" .0001" ± .0002" 101-05-3
5-6" .0001" ± .0002" 101-06-3
6-7" .0001" ± .0002" 101-07-3
7-8" .0001" ± .0002" 101-08-3
8-9" .0001" ± .0002" 101-09-3
9-10" .0001" ± .0003" 101-10-3
10-11" .0001" ± .0003" 101-11-3
11-12" .0001" ± .0003" 101-12-3
RangeGraduationAccuracyCode
0-25mm 0.01mm 0.004mm 101-01-0
25-50mm 0.01mm 0.004mm 101-02-0
50-75mm 0.01mm 0.005mm 101-03-0
75-100mm 0.01mm 0.005mm 101-04-0
100-125mm 0.01mm 0.006mm 101-05-0
125-150mm 0.01mm 0.006mm 101-06-0
150-175mm 0.01mm 0.007mm 101-07-0
175-200mm 0.01mm 0.007mm 101-08-0
200-225mm 0.01mm 0.008mm 101-09-0
225-250mm 0.01mm 0.008mm 101-10-0
250-275mm 0.01mm 0.009mm 101-11-0
275-300mm 0.01mm 0.009mm 101-12-0
0-25mm 0.001mm 0.004mm 101-01-2
25-50mm 0.001mm 0.004mm 101-02-2
50-75mm 0.001mm 0.005mm 101-03-2
75-100mm 0.001mm 0.005mm 101-04-2
100-125mm 0.001mm 0.006mm 101-05-2
125-150mm 0.001mm 0.006mm 101-06-2
150-175mm 0.001mm 0.007mm 101-07-2
175-200mm 0.001mm 0.007mm 101-08-2
200-225mm 0.001mm 0.008mm 101-09-2
225-250mm 0.001mm 0.008mm 101-10-2
250-275mm 0.001mm 0.009mm 101-11-2
275-300mm 0.001mm 0.009mm 101-12-2
RangeGraduationCode
0-3" .001" 101-63-9
0-4" .001" 101-64-9
0-6" .001" 101-66-9
0-12" .001" 101-72-9
6-12" .001" 101-82-9
0-3" .0001" 101-63-7
0-4" .0001" 101-64-7
0-6" .0001" 101-66-7
0-12" .0001" 101-72-7
6-12" .0001" 101-82-7
RangeGraduationAccuracyCode
0-75mm 0.01mm 101-63-8
0-100mm 0.01mm 101-64-8
0-150mm 0.01mm 101-66-8
0-300mm 0.01mm 101-72-8
150-300mm 0.01mm 101-82-8
0-75mm 0.001mm 101-63-6
0-100mm 0.001mm 101-64-6
0-150mm 0.001mm 101-66-6
0-300mm 0.001mm 101-72-6
150-300mm   0.001mm 101-82-6
