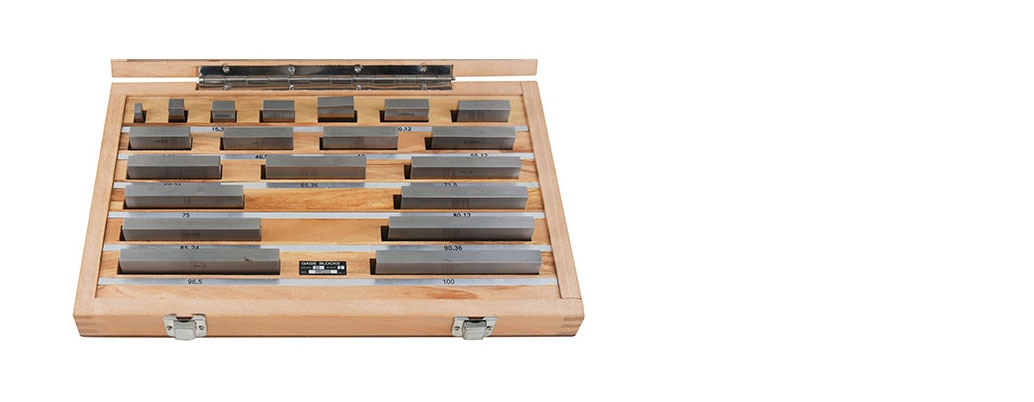

Rectangular Gauge Block (Steel)

Series 650 / 653 / 654
Rectangular Gauge Block (Steel)
  • Rectangular Gauge Block (Steel)

FEATURES

  • Individual serial numbers on each block, regardless of grade.
  • A complete certificate of calibration traceable to the NIST or DIN showing the deviation of each block.
  • Mirror polished surfaces provide superior wringing characteristics.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Blocks per SetBlock Included in Set    GradeCode No.
122pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
4 Blocks: 1.6 - 1.9mm x 0.1mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
8 Blocks: 30 - 100mm x 10mm step
2 Blocks: 25mm, 75mm		 0 650-11-0
122pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
4 Blocks: 1.6 - 1.9mm x 0.1mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
8 Blocks: 30 - 100mm x 10mm step
2 Blocks: 25mm, 75mm		 1 650-11-1
122pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
4 Blocks: 1.6 - 1.9mm x 0.1mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
8 Blocks: 30 - 100mm x 10mm step
2 Blocks: 25mm, 75mm		 2 650-11-2
103pcs 1 Block: 1.005mm
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 0 650-12-0
103pcs 1 Block: 1.005mm
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 1 650-12-1
103pcs 1 Block: 1.005mm
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 2 650-12-2
87pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 0 650-13-0
87pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 1 650-13-1
87pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 2 650-13-2
47pcs 1 Block: 1.005mm
20 Blocks: 1.01 - 1.20mm x 0.01mm step
7 Blocks: 1.3 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 0 650-14-0
47pcs 1 Block: 1.005mm
20 Blocks: 1.01 - 1.20mm x 0.01mm step
7 Blocks: 1.3 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 1 650-14-1
47pcs 1 Block: 1.005mm
20 Blocks: 1.01 - 1.20mm x 0.01mm step
7 Blocks: 1.3 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 2 650-14-2
32pcs 1 Block: 1.005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
4 Blocks: 10mm, 20mm, 30mm, 50mm		 0 650-16-0
32pcs 1 Block: 1.005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
4 Blocks: 10mm, 20mm, 30mm, 50mm		 1 650-16-1
32pcs 1 Block: 1.005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
4 Blocks: 10mm, 20mm, 30mm, 50mm		 2 650-16-2
112pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 0 650-17-0
112pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 1 650-17-1
112pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
49 Blocks: 0.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 2 650-17-2
88pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 0 650-18-0
88pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 1 650-18-1
88pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 2 650-18-2
76pcs 1 Block: 1.005mm
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
4 Blocks: 10 - 40mm x 10mm step
3 Blocks: 50 - 100mm x 25mm step		 0 650-19-0
76pcs 1 Block: 1.005mm
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
4 Blocks: 10 - 40mm x 10mm step
3 Blocks: 50 - 100mm x 25mm step		 1 650-19-1
76pcs 1 Block: 1.005mm
49 Blocks: 1.01 - 1.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
4 Blocks: 10 - 40mm x 10mm step
3 Blocks: 50 - 100mm x 25mm step		 2 650-19-2
56pcs 1 Block: 0.5mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
24 Blocks: 1 - 24mm x 1mm step
4 Blocks: 25 - 100mm x 25mm step		 0 650-20-0
56pcs 1 Block: 0.5mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
24 Blocks: 1 - 24mm x 1mm step
4 Blocks: 25 - 100mm x 25mm step		 1 650-20-1
56pcs 1 Block: 0.5mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
24 Blocks: 1 - 24mm x 1mm step
4 Blocks: 25 - 100mm x 25mm step		 2 650-20-2
46pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 0 650-21-0
46pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 1 650-21-1
46pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 2 650-21-2
34pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
6 Blocks: 1 - 5mm x 10mm step		 0 650-22-0
34pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
6 Blocks: 1 - 5mm x 10mm step		 1 650-22-1
34pcs 1 Block: 1.0005mm
9 Blocks: 1.001 - 1.009mm x 0.001mm step
9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
6 Blocks: 1 - 5mm x 10mm step		 2 650-22-2
24pcs 9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
5 Blocks: 1 - 5mm x 1mm step
1 Block: 10mm		 0 650-23-0
24pcs 9 Blocks: 1.01 - 1.09mm x 0.01mm step
9 Blocks: 1.1 - 1.9mm x 0.1mm step
5 Blocks: 1 - 5mm x 1mm step
1 Block: 10mm		 1 650-23-1
19pcs 9 Blocks: 1.1 - 1.9mm x 0.1mm step
5 Blocks: 1 - 5mm x 1mm step
2 Blocks: 10 - 20mm x 10mm step
3 Blocks: 25mm, 50mm, 100mm		 0 650-24-0
19pcs 9 Blocks: 1.1 - 1.9mm x 0.1mm step
5 Blocks: 1 - 5mm x 1mm step
2 Blocks: 10 - 20mm x 10mm step
3 Blocks: 25mm, 50mm, 100mm		 1 650-24-1
10pcs 5 Blocks: 1 - 5mm x 1mm step
2 Blocks: 10 - 20mm x 10mm step
3 Blocks: 25mm, 50mm, 100mm		 0 650-25-0
10pcs 5 Blocks: 1 - 5mm x 1mm step
2 Blocks: 10 - 20mm x 10mm step
3 Blocks: 25mm, 50mm, 100mm		 1 650-25-1
Blocks per SetBlocks Included in SetGradeNotesCode
112pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
49 Blocks: 2.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 0 ISO
DIN
JIS
GB		 650-29-0
112pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
49 Blocks: 2.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 1 ISO
DIN
JIS
GB		 650-29-1
112pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
49 Blocks: 2.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 2 ISO
DIN
JIS
GB		 650-29-2
88pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 0 ISO
DIN
JIS
GB		 650-30-0
88pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 1 ISO
DIN
JIS
GB		 650-30-1
88pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 2 ISO
DIN
JIS
GB		 650-30-2
88pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 0 ISO
DIN
JIS
GB		 650-31-0
88pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 1 ISO
DIN
JIS
GB		 650-31-1
88pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 2 ISO
DIN
JIS
GB		 650-31-2
47pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 0 ISO
DIN
JIS
GB		 650-32-0
47pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 1 ISO
DIN
JIS
GB		 650-32-1
47pcs 1 Block: 2.0005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 2 ISO
DIN
JIS
GB		 650-32-2
46pcs 9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 0 ISO
DIN
JIS
GB		 650-33-0
46pcs 9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 1 ISO
DIN
JIS
GB		 650-33-1
46pcs 9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 2 ISO
DIN
JIS
GB		 650-33-2
33pcs 1 Block: 2.005mm
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
5 Blocks: 10mm, 20mm, 30mm, 60mm, 100mm   		 0 ISO
DIN
JIS
GB		 650-34-0
33pcs 1 Block: 2.005mm
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
5 Blocks: 10mm, 20mm, 30mm, 60mm, 100mm		 1 ISO
DIN
JIS
GB		 650-34-1
33pcs 1 Block: 2.005mm
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
5 Blocks: 10mm, 20mm, 30mm, 60mm, 100mm		 2 ISO
DIN
JIS
GB		 650-34-2
8pcs 125mm, 150mm, 175mm,
200mm, 250mm, 300mm,
400mm, 450mm		 0 ISO
DIN
JIS
GB		 650-35-0
8pcs 125mm, 150mm, 175mm,
200mm, 250mm, 300mm,
400mm, 450mm		 1 ISO
DIN
JIS
GB		 650-35-1
8pcs 125mm, 150mm, 175mm,
200mm, 250mm, 300mm,
400mm, 450mm		 2 ISO
DIN
JIS
GB		 650-35-2
112pcs 1 Block: 2.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
49 Blocks: 2.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 0 ASME 650-79-0
112pcs 1 Block: 2.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
49 Blocks: 2.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 1 ASME 650-79-1
112pcs 1 Block: 2.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
49 Blocks: 2.5 - 24.5mm x 0.5mm step
4 Blocks: 25 - 100mm x 25mm step		 2 ASME 650-79-2
88pcs 1 Block: 1.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 0 ASME 650-80-0
88pcs 1 Block: 1.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 1 ASME 650-80-1
88pcs 1 Block: 1.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 2 ASME 650-80-2
88pcs 1 Block: 2.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 0 ASME 650-81-0
88pcs 1 Block: 2.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 1 ASME 650-81-1
88pcs 1 Block: 2.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
49 Blocks: 2.01 - 2.49mm x 0.01mm step
19 Blocks: 0.5 - 9.5mm x 0.5mm step
10 Blocks: 10 - 100mm x 10mm step		 2 ASME 650-81-2
47pcs 1 Block: 2.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 0 ASME 650-82-0
47pcs 1 Block: 2.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 1 ASME 650-82-1
47pcs 1 Block: 2.005mm
9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 2 ASME 650-82-2
46pcs 9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 0 ASME 650-83-0
46pcs 9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 1 ASME 650-83-1
46pcs 9 Blocks: 2.001 - 2.009mm x 0.001mm step
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
10 Blocks: 10 - 100mm x 10mm step		 2 ASME 650-83-2
33pcs 1 Block: 2.005mm
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
5 Blocks: 10mm, 20mm, 30mm, 60mm, 100mm         		 0 ASME 650-84-0
33pcs 1 Block: 2.005mm
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
5 Blocks: 10mm, 20mm, 30mm, 60mm, 100mm		 1 ASME 650-84-1
33pcs 1 Block: 2.005mm
9 Blocks: 2.01 - 2.09mm x 0.01mm step
9 Blocks: 2.1 - 2.9mm x 0.1mm step
9 Blocks: 1 - 9mm x 1mm step
5 Blocks: 10mm, 20mm, 30mm, 60mm, 100mm		 2 ASME 650-84-2
8pcs 125mm, 150mm, 175mm,
200mm, 250mm, 300mm,
400mm, 450mm		 0 ASME 650-85-0
8pcs 125mm, 150mm, 175mm,
200mm, 250mm, 300mm,
400mm, 450mm		 1 ASME 650-85-1
8pcs 125mm, 150mm, 175mm,
200mm, 250mm, 300mm,
400mm, 450mm		 2 ASME 650-85-2
Blocks per setBlocked Included in SetGradeCode
18pcs 9 Blocks: 0.991 - 0.999mm x 0.001mm step
9 Blocks: 1.001 - 1.009mm x 0.001mm step		 0 650-26-0
18pcs 9 Blocks: 0.991 - 0.999mm x 0.001mm step
9 Blocks: 1.001 - 1.009mm x 0.001mm step		 1 650-26-1
18pcs 9 Blocks: 0.991 - 0.999mm x 0.001mm step
9 Blocks: 1.001 - 1.009mm x 0.001mm step		 2 650-26-2
9pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step 0 650-27-0
9pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step 1 650-27-1
9pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step 2 650-27-2
9pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step 0 650-28-0
9pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step 1 650-28-1
9pcs 9 Blocks: 1.001 - 1.009mm x 0.001mm step 2 650-28-2
Blocks Per SetBlocks Included In SetGradeCode
81pcs 1 Block: .050"
10 Blocks: .1000"- .1009" x .0001" step
49 Blocks: .101"- .149" x .001" step
17 Blocks: .150"- .950" x .050" step
4 Blocks: 1.000"-4.000" x 1.000" step		 0 650-01-0
81pcs 1 Block: .050"
10 Blocks: .1000"- .1009" x .0001" step
49 Blocks: .101"- .149" x .001" step
17 Blocks: .150"- .950" x .050" step
4 Blocks: 1.000"-4.000" x 1.000" step		 AS-1 650-01-1
81pcs 1 Block: .050"
10 Blocks: .1000"- .1009" x .0001" step
49 Blocks: .101"- .149" x .001" step
17 Blocks: .150"- .950" x .050" step
4 Blocks: 1.000"-4.000" x 1.000" step		 AS-2 650-01-2
36pcs 1 Block: .050"
10 Blocks: .1000"- .1009" x .0001" step
9 Blocks: .101"- .109" x .001" step
9 Blocks: .110"- .190" x .010" step
4 Blocks: .200"- .500" x .100" step
3 Blocks: 1", 2", 4"		 0 650-02-0
36pcs 1 Block: .050"
10 Blocks: .1000"- .1009" x .0001" step
9 Blocks: .101"- .109" x .001" step
9 Blocks: .110"- .190" x .010" step
4 Blocks: .200"- .500" x .100" step
3 Blocks: 1", 2", 4"		 AS-1 650-02-1
36pcs 1 Block: .050"
10 Blocks: .1000"- .1009" x .0001" step
9 Blocks: .101"- .109" x .001" step
9 Blocks: .110"- .190" x .010" step
4 Blocks: .200"- .500" x .100" step
3 Blocks: 1", 2", 4"		 AS-2 650-02-2
SizeGradeCode No.
.05" 0 651-01-0
.05005" 0 651-02-0
.0503" 0 651-03-0
.0506" 0 651-04-0
.0507" 0 651-05-0
.0508" 0 651-06-0
.0509" 0 651-07-0
.052" 0 651-08-0
.053" 0 651-09-0
.054" 0 651-10-0
.055" 0 651-11-0
.056" 0 651-12-0
.058" 0 651-13-0
.06" 0 651-14-0
.1" 0 651-15-0
.10005" 0 651-16-0
.1001" 0 651-17-0
.1002" 0 651-18-0
.1003" 0 651-19-0
.1004" 0 651-20-0
.1005" 0 651-21-0
.1006" 0 651-22-0
.1007" 0 651-23-0
.1008" 0 651-24-0
.1009" 0 651-25-0
.101" 0 651-26-0
.102" 0 651-27-0
.103" 0 651-28-0
.104" 0 651-29-0
.105" 0 651-30-0
.106" 0 651-31-0
.107" 0 651-32-0
.108" 0 651-33-0
.109" 0 651-34-0
.11" 0 651-35-0
.111" 0 651-36-0
.112" 0 651-37-0
.113" 0 651-38-0
.114" 0 651-39-0
.115" 0 651-40-0
.116" 0 651-41-0
.117" 0 651-42-0
.118" 0 651-43-0
.119" 0 651-44-0
.12" 0 651-45-0
.121" 0 651-46-0
.122" 0 651-47-0
.123" 0 651-48-0
.124" 0 651-49-0
.125" 0 651-50-0
.126" 0 651-51-0
.127" 0 651-52-0
.128" 0 651-53-0
.129" 0 651-54-0
.13" 0 651-55-0
.131" 0 651-56-0
.132" 0 651-57-0
.133" 0 651-58-0
.134" 0 651-59-0
.135" 0 651-60-0
.136" 0 651-61-0
.137" 0 651-62-0
.138" 0 651-63-0
.139" 0 651-64-0
.14" 0 651-65-0
.141" 0 651-66-0
.142" 0 651-67-0
.143" 0 651-68-0
.144" 0 651-69-0
.145" 0 651-70-0
.146" 0 651-71-0
.147" 0 651-72-0
.148" 0 651-73-0
.149" 0 651-74-0
.15" 0 651-75-0
.16" 0 651-76-0
.17" 0 651-77-0
.18" 0 651-78-0
.19" 0 651-79-0
.2" 0 651-80-0
.21" 0 651-81-0
.25" 0 651-82-0
.3" 0 651-83-0
.35" 0 651-84-0
.4" 0 651-85-0
.45" 0 651-86-0
.5" 0 651-87-0
.55" 0 651-88-0
.6" 0 651-89-0
.65" 0 651-90-0
.7" 0 651-91-0
.75" 0 651-92-0
.8" 0 651-93-0
.85" 0 651-94-0
.9" 0 651-95-0
.95" 0 651-96-0
1" 0 651-97-0
2" 0 651-98-0
3" 0 651-99-0
4" 0 652-00-0
5" 0 652-01-0
6" 0 652-02-0
7" 0 652-03-0
8" 0 652-04-0
10" 0 652-05-0
12" 0 652-06-0
16" 0 652-07-0
20" 0 652-08-0
.05" 1 651-01-1
.05005" 1 651-02-1
.0503" 1 651-03-1
.0506" 1 651-04-1
.0507" 1 651-05-1
.0508" 1 651-06-1
.0509" 1 651-07-1
.052" 1 651-08-1
.053" 1 651-09-1
.054" 1 651-10-1
.055" 1 651-11-1
.056" 1 651-12-1
.058" 1 651-13-1
.06" 1 651-14-1
.1" 1 651-15-1
.10005" 1 651-16-1
.1001" 1 651-17-1
.1002" 1 651-18-1
.1003" 1 651-19-1
.1004" 1 651-20-1
.1005" 1 651-21-1
.1006" 1 651-22-1
.1007" 1 651-23-1
.1008" 1 651-24-1
.1009" 1 651-25-1
.101" 1 651-26-1
.102" 1 651-27-1
.103" 1 651-28-1
.104" 1 651-29-1
.105" 1 651-30-1
.106" 1 651-31-1
.107" 1 651-32-1
.108" 1 651-33-1
.109" 1 651-34-1
.11" 1 651-35-1
.111" 1 651-36-1
.112" 1 651-37-1
.113" 1 651-38-1
.114" 1 651-39-1
.115" 1 651-40-1
.116" 1 651-41-1
.117" 1 651-42-1
.118" 1 651-43-1
.119" 1 651-44-1
.12" 1 651-45-1
.121" 1 651-46-1
.122" 1 651-47-1
.123" 1 651-48-1
.124" 1 651-49-1
.125" 1 651-50-1
.126" 1 651-51-1
.127" 1 651-52-1
.128" 1 651-53-1
.129" 1 651-54-1
.13" 1 651-55-1
.131" 1 651-56-1
.132" 1 651-57-1
.133" 1 651-58-1
.134" 1 651-59-1
.135" 1 651-60-1
.136" 1 651-61-1
.137" 1 651-62-1
.138" 1 651-63-1
.139" 1 651-64-1
.14" 1 651-65-1
.141" 1 651-66-1
.142" 1 651-67-1
.143" 1 651-68-1
.144" 1 651-69-1
.145" 1 651-70-1
.146" 1 651-71-1
.147" 1 651-72-1
.148" 1 651-73-1
.149" 1 651-74-1
.15" 1 651-75-1
.16" 1 651-76-1
.17" 1 651-77-1
.18" 1 651-78-1
.19" 1 651-79-1
.2" 1 651-80-1
.21" 1 651-81-1
.25" 1 651-82-1
.3" 1 651-83-1
.35" 1 651-84-1
.4" 1 651-85-1
.45" 1 651-86-1
.5" 1 651-87-1
.55" 1 651-88-1
.6" 1 651-89-1
.65" 1 651-90-1
.7" 1 651-91-1
.75" 1 651-92-1
.8" 1 651-93-1
.85" 1 651-94-1
.9" 1 651-95-1
.95" 1 651-96-1
1" 1 651-97-1
2" 1 651-98-1
3" 1 651-99-1
4" 1 652-00-1
5" 1 652-01-1
6" 1 652-02-1
7" 1 652-03-1
8" 1 652-04-1
10" 1 652-05-1
12" 1 652-06-1
16" 1 652-07-1
20" 1 652-08-1
SizeGradeCode No.
0.5mm 0 653-01-0
1mm 0 653-02-0
1.001mm 0 653-03-0
1.002mm 0 653-04-0
1.003mm 0 653-05-0
1.004mm 0 653-06-0
1.005mm 0 653-07-0
1.006mm 0 653-08-0
1.007mm 0 653-09-0
1.008mm 0 653-10-0
1.009mm 0 653-11-0
1.01mm 0 653-12-0
1.02mm 0 653-13-0
1.03mm 0 653-14-0
1.04mm 0 653-15-0
1.05mm 0 653-16-0
1.06mm 0 653-17-0
1.07mm 0 653-18-0
1.08mm 0 653-19-0
1.09mm 0 653-20-0
1.1mm 0 653-27-0
1.11mm 0 653-22-0
1.12mm 0 653-23-0
1.13mm 0 653-24-0
1.14mm 0 653-25-0
1.15mm 0 653-26-0
1.16mm 0 653-27-0
1.17mm 0 653-28-0
1.18mm 0 653-29-0
1.19mm 0 653-30-0
1.2mm 0 653-31-0
1.21mm 0 653-32-0
1.22mm 0 653-33-0
1.23mm 0 653-34-0
1.24mm 0 653-35-0
1.25mm 0 653-36-0
1.26mm 0 653-37-0
1.27mm 0 653-38-0
1.28mm 0 653-39-0
1.29mm 0 653-40-0
1.3mm 0 653-41-0
1.31mm 0 653-42-0
1.32mm 0 653-43-0
1.33mm 0 653-44-0
1.34mm 0 653-45-0
1.35mm 0 653-46-0
1.36mm 0 653-47-0
1.37mm 0 653-48-0
1.38mm 0 653-49-0
1.39mm 0 653-50-0
1.4mm 0 653-51-0
1.41mm 0 653-52-0
1.42mm 0 653-53-0
1.43mm 0 653-54-0
1.44mm 0 653-55-0
1.45mm 0 653-56-0
1.46mm 0 653-57-0
1.47mm 0 653-58-0
1.48mm 0 653-59-0
1.49mm 0 653-60-0
1.5mm 0 653-61-0
1.6mm 0 653-62-0
1.7mm 0 653-63-0
1.8mm 0 653-64-0
1.9mm 0 653-65-0
2mm 0 653-66-0
2.5mm 0 653-67-0
3mm 0 653-68-0
3.5mm 0 653-69-0
4mm 0 653-70-0
4.5mm 0 653-71-0
5mm 0 653-72-0
5.5mm 0 653-73-0
6mm 0 653-74-0
6.5mm 0 653-75-0
7mm 0 653-76-0
7.5mm 0 653-77-0
8mm 0 653-78-0
8.5mm 0 653-79-0
9mm 0 653-80-0
9.5mm 0 653-81-0
10mm 0 653-82-0
10.5mm 0 653-83-0
11mm 0 653-84-0
11.5mm 0 653-85-0
12.5mm 0 653-86-0
12.5mm 0 653-87-0
13mm 0 653-88-0
13.5mm 0 653-89-0
14mm 0 653-90-0
14.5mm 0 653-91-0
15mm 0 653-92-0
15.5mm 0 653-93-0
16mm 0 653-94-0
16.5mm 0 653-95-0
17mm 0 653-96-0
17.5mm 0 653-97-0
18mm 0 653-98-0
18.5mm 0 653-99-0
19mm 0 654-00-0
19.5mm 0 654-01-0
20mm 0 654-02-0
20.5mm 0 654-03-0
21mm 0 654-04-0
21.5mm 0 654-05-0
22mm 0 654-06-0
22.5mm 0 654-07-0
23mm 0 654-08-0
23.5mm 0 654-09-0
24mm 0 654-10-0
24.5mm 0 654-11-0
25mm 0 654-12-0
30mm 0 654-13-0
40mm 0 654-14-0
50mm 0 654-15-0
60mm 0 654-16-0
70mm 0 654-17-0
75mm 0 654-18-0
80mm 0 654-19-0
90mm 0 654-20-0
100mm 0 654-21-0
0.5mm 1 653-01-1
1mm 1 653-02-1
1.001mm 1 653-03-1
1.002mm 1 653-04-1
1.003mm 1 653-05-1
1.004mm 1 653-06-1
1.005mm 1 653-07-1
1.006mm 1 653-08-1
1.007mm 1 653-09-1
1.008mm 1 653-10-1
1.009mm 1 653-11-1
1.01mm 1 653-12-1
1.02mm 1 653-13-1
1.03mm 1 653-14-1
1.04mm 1 653-15-1
1.05mm 1 653-16-1
1.06mm 1 653-17-1
1.07mm 1 653-18-1
1.08mm 1 653-19-1
1.09mm 1 653-20-1
1.1mm 1 653-27-1
1.11mm 1 653-22-1
1.12mm 1 653-23-1
1.13mm 1 653-24-1
1.14mm 1 653-25-1
1.15mm 1 653-26-1
1.16mm 1 653-27-1
1.17mm 1 653-28-1
1.18mm 1 653-29-1
1.19mm 1 653-30-1
1.2mm 1 653-31-1
1.21mm 1 653-32-1
1.22mm 1 653-33-1
1.23mm 1 653-34-1
1.24mm 1 653-35-1
1.25mm 1 653-36-1
1.26mm 1 653-37-1
1.27mm 1 653-38-1
1.28mm 1 653-39-1
1.29mm 1 653-40-1
1.3mm 1 653-41-1
1.31mm 1 653-42-1
1.32mm 1 653-43-1
1.33mm 1 653-44-1
1.34mm 1 653-45-1
1.35mm 1 653-46-1
1.36mm 1 653-47-1
1.37mm 1 653-48-1
1.38mm 1 653-49-1
1.39mm 1 653-50-1
1.4mm 1 653-51-1
1.41mm 1 653-52-1
1.42mm 1 653-53-1
1.43mm 1 653-54-1
1.44mm 1 653-55-1
1.45mm 1 653-56-1
1.46mm 1 653-57-1
1.47mm 1 653-58-1
1.48mm 1 653-59-1
1.49mm 1 653-60-1
1.5mm 1 653-61-1
1.6mm 1 653-62-1
1.7mm 1 653-63-1
1.8mm 1 653-64-1
1.9mm 1 653-65-1
2mm 1 653-66-1
2.5mm 1 653-67-1
3mm 1 653-68-1
3.5mm 1 653-69-1
4mm 1 653-70-1
4.5mm 1 653-71-1
5mm 1 653-72-1
5.5mm 1 653-73-1
6mm 1 653-74-1
6.5mm 1 653-75-1
7mm 1 653-76-1
7.5mm 1 653-77-1
8mm 1 653-78-1
8.5mm 1 653-79-1
9mm 1 653-80-1
9.5mm 1 653-81-1
10mm 1 653-82-1
10.5mm 1 653-83-1
11mm 1 653-84-1
11.5mm 1 653-85-1
12.5mm 1 653-86-1
12.5mm 1 653-87-1
13mm 1 653-88-1
13.5mm 1 653-89-1
14mm 1 653-90-1
14.5mm 1 653-91-1
15mm 1 653-92-1
15.5mm 1 653-93-1
16mm 1 653-94-1
16.5mm 1 653-95-1
17mm 1 653-96-1
17.5mm 1 653-97-1
18mm 1 653-98-1
18.5mm 1 653-99-1
19mm 1 654-00-1
19.5mm 1 654-01-1
20mm 1 654-02-1
20.5mm 1 654-03-1
21mm 1 654-04-1
21.5mm 1 654-05-1
22mm 1 654-06-1
22.5mm 1 654-07-1
23mm 1 654-08-1
23.5mm 1 654-09-1
24mm 1 654-10-1
24.5mm 1 654-11-1
25mm 1 654-12-1
30mm 1 654-13-1
40mm 1 654-14-1
50mm 1 654-15-1
60mm 1 654-16-1
70mm 1 654-17-1
75mm 1 654-18-1
80mm 1 654-19-1
90mm 1 654-20-1
100mm 1 654-21-1
125mm 1 654-22-1
175mm 1 654-23-1
200mm 1 654-25-1
250mm 1 654-27-1
300mm 1 654-29-1
400mm 1 654-31-1
500mm 1 654-33-1
600mm 1 654-35-1
700mm 1 654-37-1
800mm 1 654-39-1
900mm 1 654-41-1
1000mm 1 654-43-1
BACK
Language
