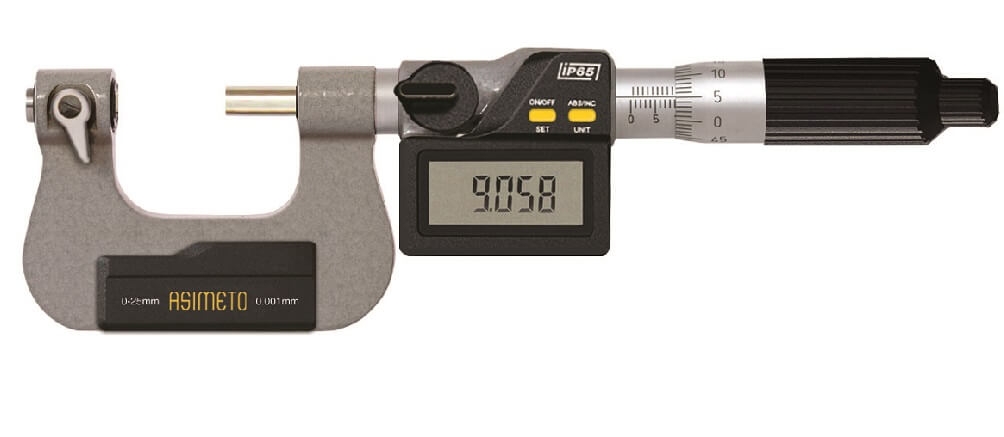

Digital Screw Thread Micrometers

Series 136 / 137
Digital Screw Thread Micrometers
  • Digital Screw Thread Micrometers

FEATURES

  • Resolution:
    Digital reading: .00005" / 0.001mm
    Scale reading: .0001" / 0.01mm
  • Protection level IP65
  • For measuring various screw threads
  • Non-rotating spindle
  • Set includes 5 pairs anvils
  • Inch/Metric conversion
  • Read the actual absolute measuring position upon switching on the display
  • Automatic On/Off to maximize battery life
  • Absolute or incremental measuring modes
  • Support Bluetooth data transmission
    Bluetooth data output: 901-01-5
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyCode No.
0-1" / 0-25mm ± .0001" 136-01-1
1-2" / 25-50mm ± .0002" 136-02-1
2-3" / 50-75mm ± .0002" 136-03-1
3-4" / 75-100mm ± .0002" 136-04-1
4-5" / 100-125mm ± .0002" 136-05-1
5-6" / 125-150mm ± .0002" 136-06-1
RangeAccuracyCode No.
0-25mm / 0-1" ± 0.002mm 136-01-0
25-50mm / 1-2" ± 0.002mm 136-02-0
50-75mm / 2-3" ± 0.003mm 136-03-0
75-100mm / 3-4" ± 0.003mm 136-04-0
100-125mm / 4-5" ± 0.003mm 136-05-0
125-150mm / 5-6" ± 0.003mm 136-06-0
RangeAccuracyCode No.
0-1" / 0-25mm ± .0001" 137-01-1
1-2" / 25-50mm ± .0002" 137-02-1
2-3" / 50-75mm ± .0002" 137-03-1
3-4" / 75-100mm ± .0002" 137-04-1
4-5" / 100-125mm ± .0002" 137-05-1
5-6" / 125-150mm ± .0002" 137-06-1
RangeAccuracyCode No.
0-25mm / 0-1" ± 0.002mm 137-01-0
25-50mm / 1-2" ± 0.002mm 137-02-0
50-75mm / 2-3" ± 0.003mm 137-03-0
75-100mm / 3-4" ± 0.003mm 137-04-0
100-125mm / 4-5" ± 0.003mm 137-05-0
125-150mm / 5-6" ± 0.003mm 137-06-0
