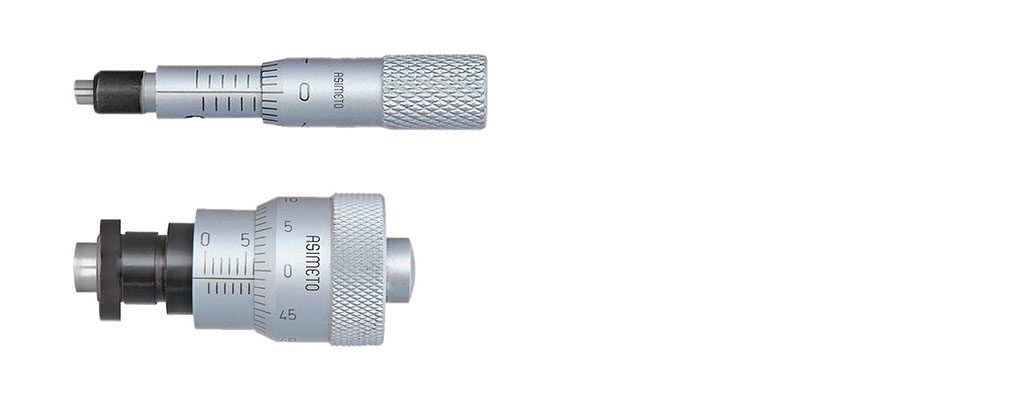

Micrometer Heads

Series 169
Micrometer Heads
  • Micrometer Heads
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
RangeAccuracyGraduationSpindle
Dia.		Spindle
Lock		Measuring FaceClamp NutCode No.　
0-2" ± .0001" .001" Φ .079" W/O Flat W/O 169-82-1
0-2" ± .0001" .001" Φ .079" W/O Spherical W/O 169-82-3
0-.25" ± .0001" .001" Φ .138" W/O Flat W/O 169-65-1
0-.25" ± .0001" .001" Φ .138" W/O Spherical W/O 169-65-3
0-.25" ± .0001" .001" Φ .138" W/O Flat With 169-65-5
0-.25" ± .0001" .001" Φ .138" W/O Spherical With 169-65-7
0-.25" ± .0001" .001" Φ .256" W/O Carbide & Flat W/O 169-75-1
0-.25" ± .0001" .001" Φ .256" W/O Carbide & Spherical W/O 169-75-3
0-.25" ± .0001" .001" Φ .256" W/O Carbide & Flat With 169-75-5
0-.25" ± .0001" .001" Φ .256" W/O Carbide & Spherical With 169-75-7
0-.25" ± .0001" .0002" Φ .256" W/O Carbide & Flat W/O 169-85-1
0-.25" ± .0001" .0002" Φ .256" W/O Carbide & Spherical W/O 169-85-3
RangeAccuracyGraduationSpindle
Dia.		Spindle
Lock		Measuring FaceClamp NutCode No.　
0-5mm 0.004mm 0.02mm Φ2mm W/O Flat W/O 169-82-0
0-5mm 0.004mm 0.02mm Φ2mm W/O Spherical W/O 169-82-2
0-6.5mm 0.004mm 0.01mm Φ3.5mm W/O Flat W/O 169-65-0
0-6.5mm 0.004mm 0.01mm Φ3.5mm W/O Spherical W/O 169-65-2
0-6.5mm 0.004mm 0.01mm Φ3.5mm W/O Flat With 169-65-4
0-6.5mm 0.004mm 0.01mm Φ3.5mm W/O Spherical With 169-65-6
0-6.5mm 0.004mm 0.01mm Φ6.5mm W/O Carbide & Flat W/O 169-75-0
0-6.5mm 0.004mm 0.01mm Φ6.5mm W/O Carbide & Spherical W/O 169-75-2
0-6.5mm 0.004mm 0.01mm Φ6.5mm W/O Carbide & Flat With 169-75-4
0-6.5mm 0.004mm 0.01mm Φ6.5mm W/O Carbide & Spherical With 169-75-6
0-6.5mm 0.004mm 0.005mm Φ6.5mm W/O Carbide & Flat W/O 169-85-0
0-6.5mm 0.004mm 0.005mm Φ6.5mm W/O Carbide & Spherical W/O 169-85-2
