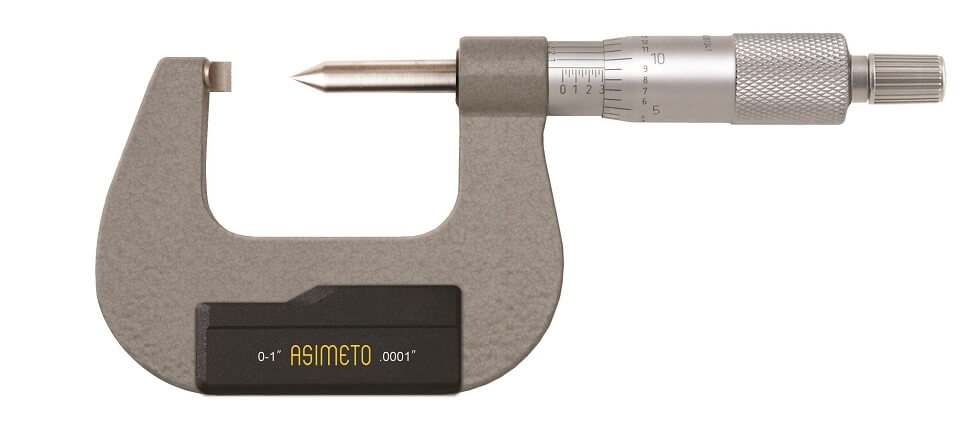

Series 131

FEATURES

  • Resolution: .0001" / 0.01mm
  • For measuring the height of crimp contacts
  • Carbide tipped measuring faces
  • Ratchet stop

PRODUCT SPECIFICATIONS

RangeAccuracyAnvil TypeCode No.
0-1" ± .0001" B 131-01-1
1-2" ± .0002" B 131-02-1
2-3" ± .0002" B 131-03-1
3-4" ± .0002" B 131-04-1
0-1" ± .0001" C 131-01-3
0-1" ± .0001" E 131-01-5
RangeAccuracyAnvil TypeCode No.
0-25mm 0.004mm B 131-01-0
25-50mm 0.004mm B 131-02-0
50-75mm 0.005mm B 131-03-0
75-100mm 0.005mm B 131-04-0
0-25mm 0.004mm C 131-01-2
0-25mm 0.004mm E 131-01-4
