Series 647

FEATURES

  • High precision marble base and mechanical structure provide great stability and rigidity.
  • Structure of 3020(P) / 4030(P) is different from that of big size machine (over5040B(P)).
  • Four-axis CNC fully auto close loop control, auto measurement.
  • Open type linear scale, high accuracy, great stability.
  • Precision linear guide, grinding ball screw and AC servo motor, ensure accuracy stability
  • Imported high definition color industry camera, ensure clear observation and stable measurement requirement.
  • Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination,  can realize 256 grade brightness adjustment intelligently.
  • Can set auto measurement, and process batch measurement with high efficiency.

PRODUCT SPECIFICATIONS

Code No.

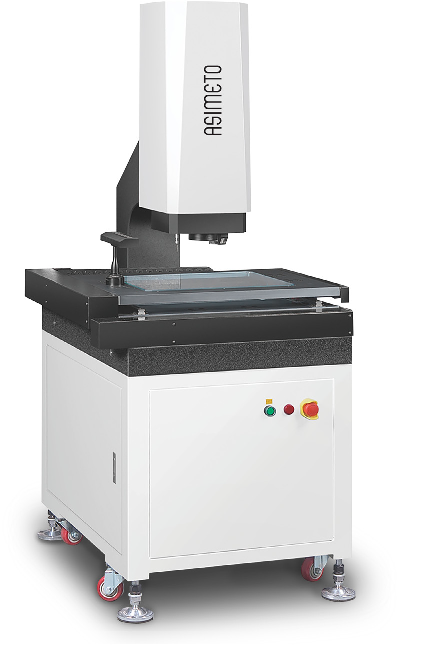

Model No. CVS3020 647-03-1
X/Y-axis Travel 300 x 200mm
Load Capacity 25kg
Dimension (WxDxH) 1200 x 780 x 1650mm
Packing Dimension 1360 x 1030 x 1650mm
Weight 380kg
Z-axis Travel 200mm
X / Y / Z  3-Axis Linear Scale High precision Linear Scale, resolution: 0.0005mm
Guidance Mode Precision linear guide, double-track double silder guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy* XY-axis: ≤2.2 + L/200 (µm)
Measurement Accuracy* Z-axis: ≤5 + L/200 (µm)
Repeatability ±2µm
Video System* * High definition 1/3" Color CCD Camera
Video System* * 6.5X continue click Zoom Lens;
Optical Magnification: 0.7X - 4.5X
Field of View* * * 0.7X - 4.5X
Field of View* * * 8.57 x 6.86 x 5.14 - 1.33 x 1.07 x 0.80
Illumination (Contour) LED Parallel Contour Illumination
Illumination (Surface) 5-ring 8-division 0 - 255 grade continue adjustable
Code No.
Model No. CVS3020 647-03-1
X/Y-axis Travel 300 x 200mm
Load Capacity 25kg
Dimension (WxDxH) 1200 x 780 x 1650mm
Packing Dimension 1360 x 1030 x 1650mm
Weight 380kg
Z-axis Travel 200mm
X / Y / Z  3-Axis Linear Scale High precision Linear Scale, resolution: 0.0005mm
Guidance Mode Precision linear guide, double-track double silder guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy* XY-axis: ≤2.2 + L/200 (µm)
Measurement Accuracy* Z-axis: ≤5 + L/200 (µm)
Repeatability ±2µm
Video System* * High definition 1/3" Color CCD Camera
Video System* * 6.5X continue click Zoom Lens
Optical Magnification: 0.7X - 4.5X
Field of View* * * 0.7X - 4.5X
Field of View* * * 8.57 x 6.86 x 5.14 - 1.33 x 1.07 x 0.80
Illumination (Contour) LED Parallel Contour Illumination
Illumination (Surface) 5-ring 8-division 0 - 255 grade continue adjustable
Code No.
Model No. CVS4030 647-04-1
X/Y-axis Travel 400 x 300mm
Load Capacity 25kg
Dimension (WxDxH) 1350 x 880 x 1650mm
Packing Dimension 1460 x 1100 x 1900mm
Weight 450kg
Z-axis Travel 200mm
X / Y / Z  3-Axis Linear Scale High precision Linear Scale, resolution: 0.0005mm
Guidance Mode Precision linear guide, double-track double silder guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy* XY-axis: ≤2.2 + L/200 (µm)
Measurement Accuracy* Z-axis: ≤5 + L/200 (µm)
Repeatability ±2µm
Video System* * High definition 1/3" Color CCD Camera
Video System* * 6.5X continue click Zoom Lens
Optical Magnification: 0.7X - 4.5X
Field of View* * * 0.7X - 4.5X
Field of View* * * 8.57 x 6.86 x 5.14 - 1.33 x 1.07 x 0.80
Illumination (Contour) LED Parallel Contour Illumination
Illumination (Surface) 5-ring 8-division 0 - 255 grade continue adjustable
Code No.
Model No. CVS4030 647-04-1
X/Y-axis Travel 400 x 300mm
Load Capacity 25kg
Dimension (WxDxH) 1350 x 880 x 1650mm
Packing Dimension 1460 x 1100 x 1900mm
Weight 450kg
Z-axis Travel 200mm
X / Y / Z  3-Axis Linear Scale High precision Linear Scale, resolution: 0.0005mm
Guidance Mode Precision linear guide, double-track double silder guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy* XY-axis: ≤2.2 + L/200 (µm)
Measurement Accuracy* Z-axis: ≤5 + L/200 (µm)
Repeatability ±2µm
Video System* * High definition 1/3" Color CCD Camera
Video System* * 6.5X continue click Zoom Lens
Optical Magnification: 0.7X - 4.5X
Field of View* * * 0.7X - 4.5X
Field of View* * * 8.57 x 6.86 x 5.14 - 1.33 x 1.07 x 0.80
Illumination (Contour) LED Parallel Contour Illumination
Illumination (Surface) 5-ring 8-division 0 - 255 grade continue adjustable
Code No.
Model No. CVS6050B 647-06-1
X/Y-axis Travel 600 x 500mm
Load Capacity 30kg
Dimension (WxDxH) 1600x1050x1650mm
Packing Dimension 1800x1400x2000mm
Weight 1380kg
Z-axis Travel 200mm
X / Y / Z  3-Axis Linear Scale High precision Linear Scale, resolution: 0.0001mm
Guidance Mode Imported H grade Linear Guide: Double-Track Double Slider Guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy* XY-axis: ≤1.8 + L/200 (µm)
Measurement Accuracy* Z-axis: ≤5 + L/200 (µm)
Repeatability ±2µm
Video System* * 1/2" Color CCD Camera
Video System* * 6.5X Automatic Zoom Lens; Optical Magnification: 0.7X ~ 4.5X
Field of View* * * 0.7X - 4.5X
Field of View* * * 11.43 x 9.14 x 6.86 - 1.78 x 1.42 x 1.07
Illumination (Contour) LED Parallel Contour Illumination
Illumination (Surface) 5-ring 8-division 0 - 255 grade continue adjustable
Code No.
Model No. CVS6050B 647-06-1
X/Y-axis Travel 600 x 500mm
Load Capacity 30kg
Dimension (WxDxH) 1600x1050x1650mm
Packing Dimension 1800x1400x2000mm
Weight 1380kg
Z-axis Travel 200mm
X / Y / Z  3-Axis Linear Scale High precision Linear Scale, resolution: 0.0001mm
Guidance Mode Imported H grade Linear Guide: Double-Track Double Slider Guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy* XY-axis: ≤1.8 + L/200 (µm)
Measurement Accuracy* Z-axis: ≤5 + L/200 (µm)
Repeatability ±2µm
Video System* * 1/2" Color CCD Camera
Video System* * 6.5X Automatic Zoom Lens
Optical Magnification: 0.7X - 4.5X
Field of View* * * 0.7X - 4.5X
Field of View* * * 11.43 x 9.14 x 6.86 - 1.78 x 1.42 x 1.07
Illumination (Contour) LED Parallel Contour Illumination
Illumination (Surface) 5-ring 8-division 0 - 255 grade continue adjustable
Code No.
Model No. CVS8060B 647-08-1
X/Y-axis Travel 800 x 600mm
Load Capacity 30kg
Dimension (WxDxH) 2000x1200x1650mm
Packing Dimension 2300x1700x2000mm
Weight 2000kg
Z-axis Travel 200mm
X / Y / Z  3-Axis Linear Scale High precision Linear Scale, resolution: 0.0001mm
Guidance Mode Imported H grade Linear Guide: Double-Track Double Slider Guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy* XY-axis: ≤1.8 + L/200 (µm)
Measurement Accuracy* Z-axis: ≤5 + L/200 (µm)
Repeatability ±2µm
Video System* * 1/2" Color CCD Camera
Video System* * 6.5X Automatic Zoom Lens
Optical Magnification: 0.7X - 4.5X
Field of View* * * 0.7X - 4.5X
Field of View* * * 11.43 x 9.14 x 6.86 - 1.78 x 1.42 x 1.07
Illumination (Contour) LED Parallel Contour Illumination
Illumination (Surface) 5-ring 8-division 0 - 255 grade continue adjustable
Code No.
Model No. CVS8060B 647-08-1
X/Y-axis Travel 800 x 600mm
Load Capacity 30kg
Dimension (WxDxH) 2000x1200x1650mm
Packing Dimension 2300x1700x2000mm
Weight 2000kg
Z-axis Travel 200mm
X / Y / Z  3-Axis Linear Scale High precision Linear Scale, resolution: 0.0001mm
Guidance Mode Imported H grade Linear Guide: Double-Track Double Slider Guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy* XY-axis: ≤1.8 + L/200 (µm)
Measurement Accuracy* Z-axis: ≤5 + L/200 (µm)
Repeatability ±2µm
Video System* * 1/2" Color CCD Camera
Video System* * 6.5X Automatic Zoom Lens
Optical Magnification: 0.7X - 4.5X
Field of View* * * 0.7X - 4.5X
Field of View* * * 11.43 x 9.14 x 6.86 - 1.78 x 1.42 x 1.07
Illumination (Contour) LED Parallel Contour Illumination
Illumination (Surface) 5-ring 8-division 0 - 255 grade continue adjustable
