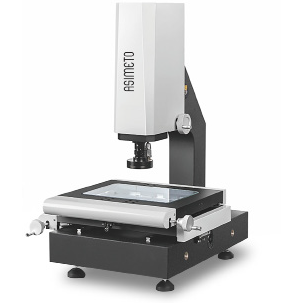

Manual 2D Vision Measuring System Series-647-2DManual

Series 647

FEATURES

High precision marble base and mechanical structure provide great stability and rigidity.
6.5X Detented zoom lens, magnification 0.7x - 4.5x.
1.3M pixel digital camera.
Programmable 3-ring 8-division LED surface illumination.
Contour parallel LED illumination.
0.5μm linear scale.
Laser indicator navigator.
RationalVue software.

OPTIONAL

Co-axial light
Auto zoom lens
Touch probe

Q'ty :

Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC

		Code No.
Model No.	MVS2010	647-01-0
X/Y-Axis Travel	200 x 100mm
Dimension (WxDxH)	550 x 540 x 830mm
Weight	140kg
Z-Axis Travel	200mm
X/Y/Z-Axis Scale Resolution	.0005mm
X/Y-Axis Accuracy*	≤2.5 + L/200(μm)
Repeatability	±2μm
Base and Pillar	High Accuracy Marble
Illumination System (Software Adjustment)	Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination
Illumination System (Software Adjustment)	Contour: LED Parallel Illumination
Illumination System (Software Adjustment)	LED Laser Navigation Lights
Camera	1.3M Pixel Digital Camera
Zoom lens**	6.5X High Resolution Detented Zoom Lens
Zoom lens**	Magnification: 0.7X ~ 4.5X Video Magnification: 20X ~ 200X
Field of View	8.1 ~ 1.3mm (Depends on Camera and Lens)
Working Environment	Temperature: 20°C±2°C Change range < 2°C/hr
Working Environment	Humidity: 30% ~ 80%
Working Environment	Vibration <0.002g, <15Hz

		Code No.
Model No.	MVS3020	647-03-0
X/Y-Axis Travel	300 x 200mm
Dimension (WxDxH)	600 x 740 x 890mm
Weight	190kg
Z-Axis Travel	200mm
X/Y/Z-Axis Scale Resolution	.0005mm
X/Y-Axis Accuracy*	≤2.5 + L/200(μm)
Repeatability	±2μm
Base and Pillar	High Accuracy Marble
Illumination System (Software Adjustment)	Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination
Illumination System (Software Adjustment)	Contour: LED Parallel Illumination
Illumination System (Software Adjustment)	LED Laser Navigation Lights
Camera	1.3M Pixel Digital Camera
Zoom lens**	6.5X High Resolution Detented Zoom Lens
Zoom lens**	Magnification: 0.7X ~ 4.5X Video Magnification: 20X ~ 200X
Field of View	8.1 ~ 1.3mm (Depends on Camera and Lens)
Working Environment	Temperature: 20°C±2°C Change range < 2°C/hr
Working Environment	Humidity: 30% ~ 80%
Working Environment	Vibration <0.002g, <15Hz

		Code No.
Model No.	MVS4030	647-04-0
X/Y-Axis Travel	400 x 300mm
Dimension (WxDxH)	700 x 840 x 890mm
Weight	240kg
Z-Axis Travel	2,000mm
X/Y/Z-Axis Scale Resolution	.0005mm
X/Y-Axis Accuracy*	≤2.5 + L/200(μm)
Repeatability	±2μm
Base and Pillar	High Accuracy Marble
Illumination System (Software Adjustment)	Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination
Illumination System (Software Adjustment)	Contour: LED Parallel Illumination
Illumination System (Software Adjustment)	LED Laser Navigation Lights
Camera	1.3M Pixel Digital Camera
Zoom lens**	6.5X High Resolution Detented Zoom Lens
Zoom lens**	Magnification: 0.7X ~ 4.5X Video Magnification: 20X ~ 200X
Field of View	8.1 ~ 1.3mm (Depends on Camera and Lens)
Working Environment	Temperature: 20°C±2°C Change range < 2°C/hr
Working Environment	Humidity: 30% ~ 80%
Working Environment	Vibration <0.002g, <15Hz

		Code No.
Model No.	MVS5040	647-05-0
X/Y-Axis Travel	500 x 400mm
Dimension (WxDxH)	800 x 940 x 890mm
Weight	290kg
Z-Axis Travel	2,000mm
X/Y/Z-Axis Scale Resolution	.0005mm
X/Y-axis Accuracy*	≤2.5 + L/200(μm)
Repeatability	±2μm
Base and Pillar	High Accuracy Marble
Illumination System (Software Adjustment)	Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination
Illumination System (Software Adjustment)	Contour: LED Parallel Illumination
Illumination System (Software Adjustment)	LED Laser Navigation Lights
Camera	1.3M Pixel Digital Camera
Zoom lens**	6.5X High Resolution Detented Zoom Lens
Zoom lens**	Magnification: 0.7X ~ 4.5X Video Magnification: 20X ~ 200X
Field of View	8.1 ~ 1.3mm (Depends on Camera and Lens)
Working Environment	Temperature: 20°C±2°C Change range < 2°C/hr
Working Environment	Humidity: 30% ~ 80%
Working Environment	Vibration <0.002g, <15Hz
