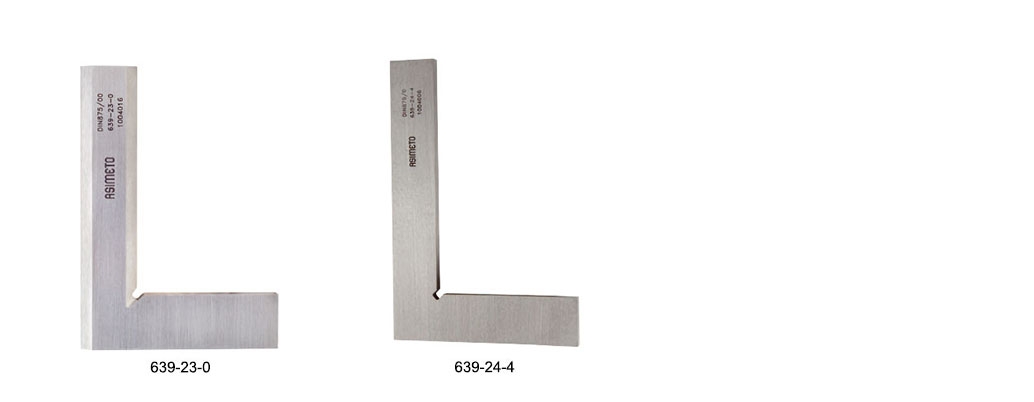

Steel Squares

Series 639
Steel Squares
  • Steel Squares

FEATURES

  • Made of precision ground hardened Stainless Steel
  • Accuracy according to DIN875
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
Inch SizeMetric SizeSquarenessNotesCode No.　
2” x 1.6" 50 x 40mm 0 General Type 639-21-4
3” x 2" 75 x 50mm 0 General Type 639-22-4
4” x 2.75" 100 x 70mm 0 General Type 639-23-4
6” x 4" 150 x 100mm 0 General Type 639-24-4
8” x 5" 200 x 130mm 0 General Type 639-25-4
10” x 6.5" 250 x 160mm 0 General Type 639-26-4
12” x 8" 300 x 200mm 0 General Type 639-27-4
16” x 10" 400 x 265mm 1 General Type 639-28-4
20” x 12" 500 x 330mm 1 General Type 639-29-4
3” x 2" 75 x 50mm 0 With Extra Base 639-53-0
4” x 2.75" 100 x 70mm 0 With Extra Base 639-54-0
6” x 4" 150 x 100mm 0 With Extra Base 639-55-0
8” x 5" 200 x 130mm 0 With Extra Base 639-56-0
10” x 6.5" 250 x 160mm 0 With Extra Base 639-57-0
12” x 8" 300 x 200mm 0 With Extra Base 639-58-0
16” x 10" 400 x 265mm 1 With Extra Base 639-59-0
20” x 12" 500 x 300mm 1 With Extra Base 639-60-0
Inch SizeMetric SizeSquarenessNotesCode No.　
2” x 1.6" 50 x 40mm 0 General Type 639-21-4
3” x 2" 75 x 50mm 0 General Type 639-22-4
4” x 2.75" 100 x 70mm 0 General Type 639-23-4
6” x 4" 150 x 100mm 0 General Type 639-24-4
8” x 5" 200 x 130mm 0 General Type 639-25-4
10” x 6.5" 250 x 160mm 0 General Type 639-26-4
12” x 8" 300 x 200mm 0 General Type 639-27-4
16” x 10" 400 x 265mm 1 General Type 639-28-4
20” x 12" 500 x 330mm 1 General Type 639-29-4
3” x 2" 75 x 50mm 0 With Extra Base 639-53-0
4” x 2.75" 100 x 70mm 0 With Extra Base 639-54-0
6” x 4" 150 x 100mm 0 With Extra Base 639-55-0
8” x 5" 200 x 130mm 0 With Extra Base 639-56-0
10” x 6.5" 250 x 160mm 0 With Extra Base 639-57-0
12” x 8" 300 x 200mm 0 With Extra Base 639-58-0
16” x 10" 400 x 265mm 1 With Extra Base 639-59-0
20” x 12" 500 x 300mm 1 With Extra Base 639-60-0
Inch SizeMetric SizeSquarenessNotesCode No.　
2” x 1.6" 50 x 40mm 00 General Type 639-21-0
3” x 2" 75 x 50mm 00 General Type 639-22-0
4” x 2.75" 100 x 70mm 00 General Type 639-23-0
6” x 4" 150 x 100mm 00 General Type 639-24-0
8” x 5" 200 x 130mm 00 General Type 639-25-0
10” x 6.5" 250 x 160mm 00 General Type 639-26-0
12” x 8" 300 x 200mm 00 General Type 639-27-0
3” x 2" 75 x 50mm 1 With Extra Base 639-53-1
4” x 2.75" 100 x 70mm 1 With Extra Base 639-54-1
6” x 4" 150 x 100mm 1 With Extra Base 639-55-1
8” x 5" 200 x 130mm 1 With Extra Base 639-56-1
10” x 6.5" 250 x 160mm 1 With Extra Base 639-57-1
12” x 8" 300 x 200mm 1 With Extra Base 639-58-1
Inch SizeMetric SizeSquarenessNotesCode No.　
2” x 1.6" 50 x 40mm 00 General Type 639-21-0
3” x 2" 75 x 50mm 00 General Type 639-22-0
4” x 2.75" 100 x 70mm 00 General Type 639-23-0
6” x 4" 150 x 100mm 00 General Type 639-24-0
8” x 5" 200 x 130mm 00 General Type 639-25-0
10” x 6.5" 250 x 160mm 00 General Type 639-26-0
12” x 8" 300 x 200mm 00 General Type 639-27-0
3” x 2" 75 x 50mm 1 With Extra Base 639-53-1
4” x 2.75" 100 x 70mm 1 With Extra Base 639-54-1
6” x 4" 150 x 100mm 1 With Extra Base 639-55-1
8” x 5" 200 x 130mm 1 With Extra Base 639-56-1
10” x 6.5" 250 x 160mm 1 With Extra Base 639-57-1
12” x 8" 300 x 200mm 1 With Extra Base 639-58-1
