Surface Gauges

Series 500

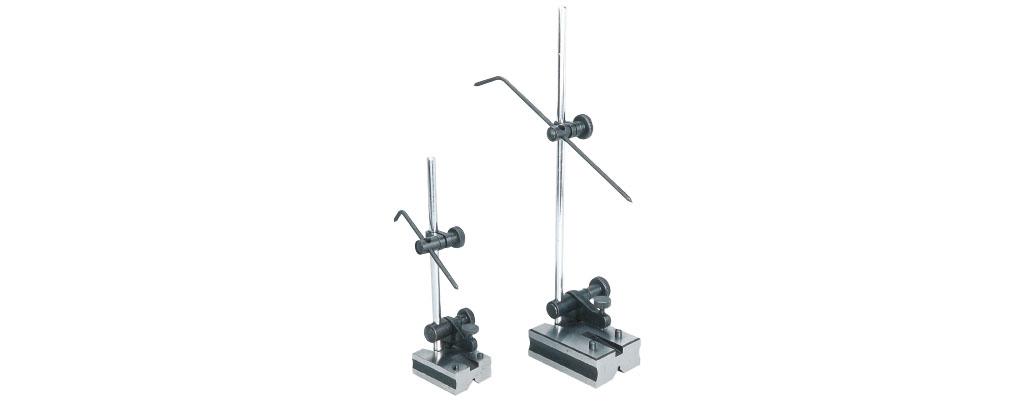

Surface Gauges
  • Surface Gauges

FEATURES

  • Base hardened.
  • Bottom grooved for cylindrical work.
  • Front end recessed for depressing spindle below base level.
  • Knurled thumb screw in rocker for extra fine adjustment.
  • Includes scriber.
  • Universal surface gauge includes clamp attachment (with 5/32" and 15/64" holes) for holding indicators, scribers, etc.
Inquiry

PRODUCT SPECIFICATIONS

INCH METRIC
DescriptionSpindlesBase Dimensions
(L x W x H)		Code No.
Small Toolmaker's Surface Gauge 7" 2-1/8" x 1-9/16" x 3/4" 500-28-4
Universal Surface Gauge 9" and 12" 3-5/16" x 2-9/16" x 1-1/16" 500-29-4
